SP8/20-0.8 Data Center Pump
Volt:
Head:
Noise:
Speed control ways:
Protection level:
Function:
Medium temperature:
Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com - Our Facebook is：Shenpeng Pump Obtain samples / Obtain parameters |
The SP8/20‑0.8 is a heavy‑duty 380V centrifugal circulation pump engineered for large‑scale data center CDU(Coolant Distribution Unit) liquid‑cooling systems. It delivers flow rate of 3‑15m³/h and head range 1‑30 m, supporting clean water and 50% ethylene glycol aqueous solution as cooling medium. This industrial‑grade pump features ultra‑long service life up to **80000 hours**, insulation class F, built‑in dry‑running and locked‑rotor protection. OEM & ODM customization service is available. Note: This pump is non‑self‑priming.
■Product application
Designed for data center CDU coolant circulation,
large‑scale IDC liquid‑cooling loops,
high‑density AI computing cluster liquid cooling projects,
server cold‑plate cooling circulation.
■Product information:
Insulation level: F
Service life: 80000 hours
Ambient temperature: -40 to +80℃
Medium temperature: -40 to +70℃
Medium: Clean Water & 50% Ethylene Glycol Aqueous Solution

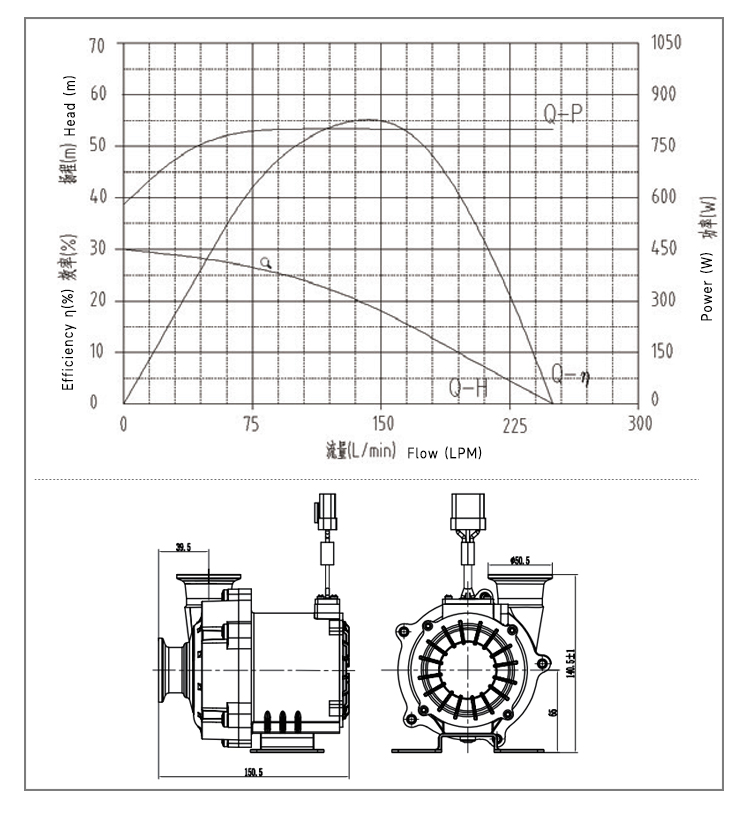

■ Curve
Rated Voltage | Voltage Range | Rated Current | Head | Flow | Rated Poweer | Max Noise |
V | V | A | m | m³/h | W | dB（A） |
380 | 323-437 | 2.2 | 15-30 | 3-15 | 800 | / |
■ Specifications
Type | SP8/20-0.8 |
Rated Voltage | 380V |
Voltage Range | 323-437V |
Flow Rate | 3-15m³/h |
Lift / Head | 15-30m |
Max Noise | / |
Motor Type | Brushless Motor |
Food Grade(Y/N) | N |
Liquid Temperature | -40 to+80℃ |
Ambient Temperature | -40 to +70℃ |
Pump Theory | Centrifugal Pump |
Medium | Clean Water & 50% Ethylene Glycol Aqueous Solution |
Using Place | In door |
Power Consumption | 800W |
Service Life | 80000 hours |
OD of Inlet | ∅50.5mm |
OD of Outlet | ∅50.5mm |
Power supply | / |
Structure | / |
Material | / |
Customized functions | 1, Dry-running protection 2, Locked-rotor protection |
Remarks | Not self-priming |
■ FAQ
●What coolant medium can SP8/20-0.8 data center pump circulate?
It supports clean water and 50% ethylene glycol aqueous solution.
●Is SP8/20‑0.8 centrifugal pump self‑priming?
No, this pump is non-self-priming.
●What warranty policy do you offer for SP8/20‑0.8?
2‑year warranty period. Free repair or return for non‑man‑made damage.
●Can you provide OEM & ODM service for this CDU cooling pump?
Yes, OEM / ODM custom service is available. Please send your technical requirements to sp005@dgshenpeng.com for further discussion.
●How long is the service life of SP8/20‑0.8 CDU pump?
The rated service life can reach up to 80000 hours for qualified operating conditions.
●What lead time for sample and bulk purchase?
Sample order:7‑10 working days; bulk order: 30‑35 working days. In‑stock goods can ship within 2 working days.
●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
