P609248I04 CDU Cooling Circulation Pump

Location:

Home › Water pump › Data Center Pumps

Products

Volt: 48V
Head: 0-20m
Noise: ≤55dB(A)
Speed control ways:
Protection level: IP65
Function:
Medium temperature:

Remarks:

- We can offer OEM/ODM service.

- If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com

- Our Facebook is：Shenpeng Pump

Obtain samples / Obtain parameters

The P609248I04 CDU Cooling Circulation Pump is a 48V DC brushless centrifugal pump specially developed for data center coolant distribution unit (CDU) liquid‑cooling systems. It supports clean water and 50% ethylene glycol aqueous solution as cooling medium. With IP65 protection grade, wide working temperature range and built‑in dry‑running & locked‑rotor protection, this pump delivers stable circulation performance for indoor data‑center cooling loops. Service life reaches 20000 hours, max noise ≤55dB (A). OEM & ODM customization service is available.

P609248I04 CDU Cooling Circulation Pump 48V DC brushless centrifugal pump for data center liquid cooling.jpg

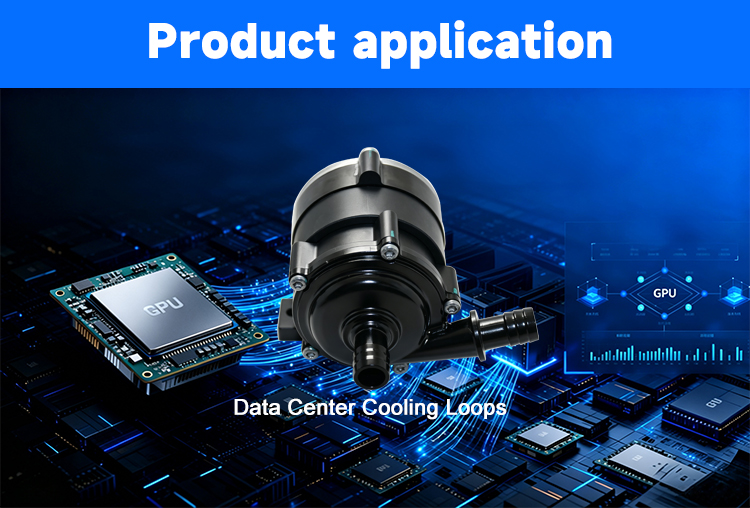

■Product application

Data Center Cooling Circulation

■Product information:

Insulation level: H

Service life: 20000 hours

Ambient temperature: -45 to +55℃

Medium temperature: -40 to +80℃

Medium: Clean Water & 50% Ethylene Glycol Aqueous Solution

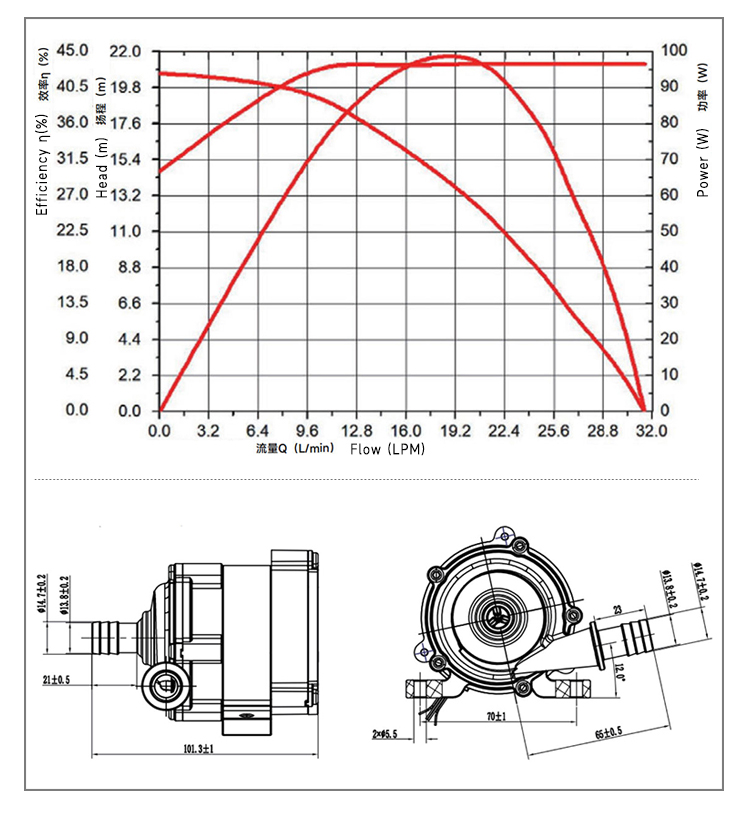

■ Curve

P609248I04 pump performance curve‑max head 20m max flow 30L/min CDU circulation pump.jpg

Rated Voltage	Voltage Range	Rated Current	Max Head	Max Flow	Rated Poweer	Max Noise
V	V	A	m	L/min	W	dB（A）
48	37-56	2.08	20	30	100	≤55

■ Specifications

Type	P609248I04
Rated Voltage	48V
Voltage Range	37-56V
Max Flow	30L/min
Max Lift	20m
Max Noise	≤55dB
Motor Type	DC Brushless Motor
Food Grade(Y/N)	N
Liquid Temperature	-40 to+80℃
Ambient Temperature	-45 to +55℃
Pump Theory	Centrifugal Pump
Medium	Clean Water & 50% Ethylene Glycol Aqueous Solution
Using Place	In door
Power Consumption	100W
Service Life	20000 hours
OD of Inlet	∅13.8mm
OD of Outlet	∅13.8mm
Power supply	Battery / Electric / Solar panel
Structure	Single-stage
Material	/
Customized functions	1, Dry-running protection 2, Locked-rotor protection
Remarks	Not self-priming

■ FAQ

●What coolant medium can P609248I04 CDU cooling circulation pump handle?
It supports clean water and 50% ethylene glycol aqueous solution.

●Is this CDU centrifugal pump self‑priming?
No, this pump is non-self-priming.

●What is the warranty of this data center CDU pump?
Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.

●Can you provide OEM & ODM service for this CDU cooling pump?
Yes, OEM / ODM custom service is available. Please send your technical requirements to sp005@dgshenpeng.com for further discussion.

●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 30~35 days.

If there is pumps in stock, it is 2 days.
