P7509 48V DC Brushless Energy Storage Cooling Water Pump

Location:

Products

Volt: 48V
Head: 0-33m
Noise: ≤60dB(A)
Speed control ways:
Protection level: IP67
Function:
Medium temperature: -40-85℃

Remarks:

- We can offer OEM/ODM service.

- If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com

- Our Facebook is：Shenpeng Pump

Obtain samples / Obtain parameters

P7509 48V DC brushless energy storage cooling water pump Shenpeng.jpg

■Product application

Energy storage cooling system

■Product information:

Insulation level:F

Service life:30000 hours

Ambient temperature:-40 to +90℃

Medium temperature:-40 to +85℃

Medium:Clear water

Using place:Indoor

■ FAQ

●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.

●How long is your warranty of pump?
Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.

●What’s the payment method?
Paypal or T/T，L/C .

●What certificates have your pumps passed?
All our products have passed CE, RoHS, Reach.
Some pumps met FDA, UL.

■ Specifications

Type	P7509
Rated Voltage	48V
Voltage Range	36-55V
Max Flow	100L/min
Max Lift	34m
Max Noise	60dB
Motor Type	DC Brushless Motor
Food Grade(Y/N)	N
Liquid Temperature	-40 to+85℃
Ambient Temperature	-40 to +95℃
Pump Theory	Centrifugal Pump
Medium	Hot or cold water
Using Place	In door
Power Consumption	500W
Service Life	30000 hours
OD of Inlet	∅50mm
OD of Outlet	∅50mm
Power supply	Battery / Electric / Solar panel
Structure	Single-stage
Material	XYRON PPE
Customized functions	1, Dry-running protection 2, Locked-rotor protection
Remarks	Not self-priming

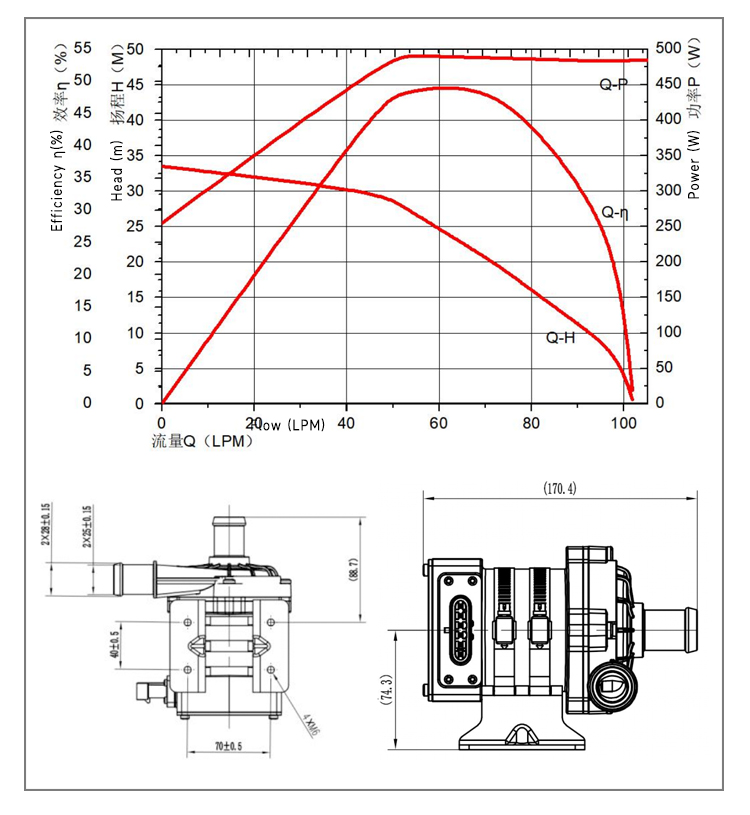

■ Curve
