  • 12V Automobile Cooling Pump P5017

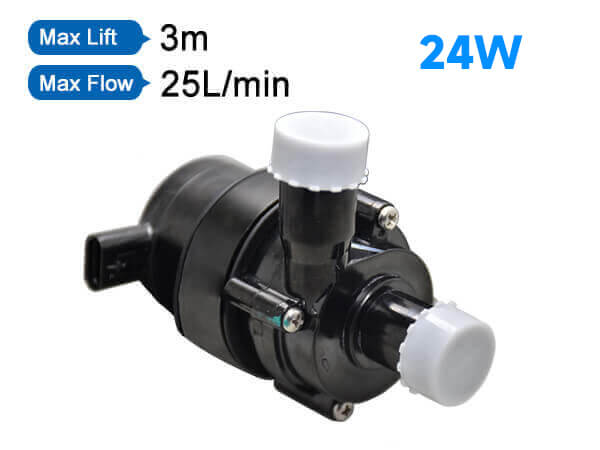

12V Automobile Cooling Pump P5017

Volt: 12V
Head: 0-3m
Noise: ≤35dB(A)
Speed control ways:
Protection level: IP67
Function:
Medium temperature: -40-125°C



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                        未标题-2-1.jpg




Automobile Cooling Pump P5017.jpg


■ Product application
    Heating vertilation air conditioning
    Auto turbocharger water cooling cycle
    New energy vehicle cooling cycle


■ Product information
    Ambient temperature:-40 to 125℃
    Medium temperature:-40 to 120℃
    MediumClear water,antifreeze
    Weight:0.38Kg
    Protection level:IP67
    Insulation level:H
    Service life:20000 hours
    Inlet and outlet:20mm

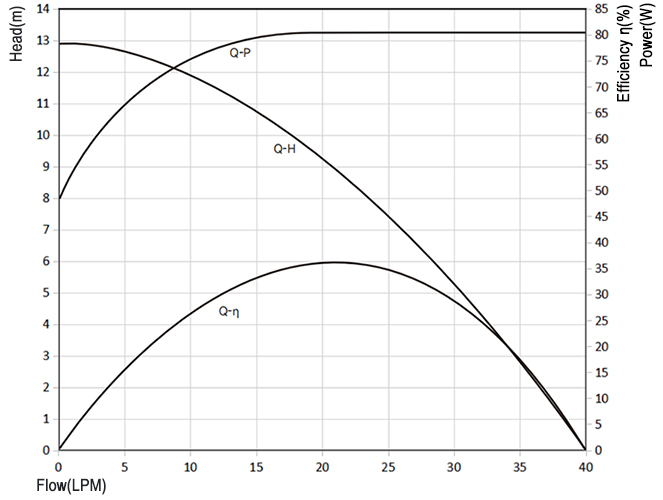

■ Curve


Automobile Cooling Pump P5017.jpg


Automobile Cooling Pump P5017.jpg



Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A)

12

8-20

2

3

25

24

≤35



■ FAQ
   ●How long is your delivery time?
    - Sample order is 7~10 days.
    - Bulk order is 15~20 days.
    - If there is pumps in stock, it is 2 days.

   ●How long is your warranty of pump?
    - Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.

   ●What’s the payment method?
   - Paypal or T/T,L/C .

   ●What certificates have your pumps passed?
   - All our products have passed CE, RoHS, Reach.
   - Some pumps met FDA, UL.


Specifications

Type

P5017

Rated Voltage

12V

Voltage Range

8-20V

Max Flow

25L/min

Max Lift

3m

Max Noise

35dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

-45-125℃

Ambient Temperature

-40-120℃

Pump Theory

Centrifugal Pump

Medium

Water, antifreeze

Protection Level

IP67

Using Place

Vehicle

Power Consumption

24W

Service Life

20000 hours

OD of inlet

∅20mm

OD of Outlet

∅20mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, Locked-rotor protection

Remarks

Not self-priming



motorcycle water pump price,motorcycle electric water pump,motorcycle water pump for sale,motorcycle water pump fitting,how does a motorcycle water pump work,bicycle water pump (centrifugal)
