  • 12V/24V vehicle DC water Pump P6208

12V/24V vehicle DC water Pump P6208

Volt: 12V/24V
Head: 3-9m
Noise: ≤40dB(A)
Speed control ways:
Protection level: IP67
Function:
Medium temperature: -40-125°C



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                        未标题-2-1.jpg






■ Product application

   Heating vertilation air conditioning

   New energy automotive cooling circuit




■ Product information

    Ambient temperature:-25 to 125℃

    Medium temperature:-25 to 120℃

    Medium:Clear water,antifreeze

    Using place: Indoor

    Weight:0.63Kg

    Protection Level:IP67

    Insulation level:H

    Service life:20000 hours

    Inlet and outlet:22mm



■ FAQ

  ●How long is your delivery time?
     Sample order is 7~10 days.
     Bulk order is 15~20 days.
     If there is pumps in stock, it is 2 days.



   ●How long is your warranty of pump?
     Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



   ●What’s the payment method?
     Paypal or T/T,L/C .



   ●What certificates have your pumps passed?
     All our products have passed CE, RoHS, Reach.
     Parts of pumps met FDA, UL.

 Specifications

Type

P6208

Rated Voltage

12V / 24V

Voltage Range

8-20V / 12-30V

Max Flow

30L/min, 35L/min

Max Lift

7m / 9m

Max Noise

38dB / 40dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

-25 to120

Ambient Temperature

-25 to 125

Pump Theory

Centrifugal Pump

Medium

Clear water, antifreeze

Protection Level

IP67

Using Place

Indoor

Power Consumption

37W / 55W

Service Life

20000 hours

OD of inlet

22mm

OD of Outlet

22mm

Power supply

DC electricity /Battery / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, PWM speed adjustable

3, FG signal output

4, Locked-rotor protection

Remarks

Not self-priming

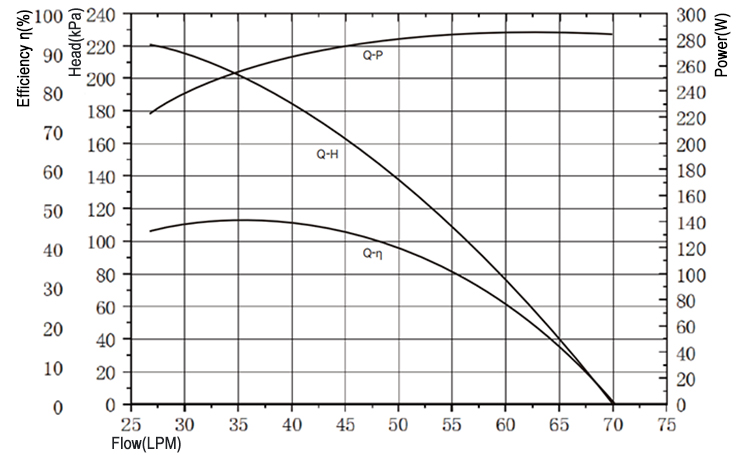

 Curve




Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

12

8-20

3.1

7

30

37

38

24

12-30

2.4

9

35

55

40
