  • 24V DC Car Auto Pump P8002

24V DC Car Auto Pump P8002

Volt: 24V
Head: 9-15m
Noise: ≤50dB(A)
Speed control ways:
Protection level: IP67
Function:
Medium temperature: -40-125°C







  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                         未标题-2-1.jpg




DC Car Auto Pump P8002.jpg

■ Product application

   Heating vertilation air conditioning

   Cold water cycle in car

   The new energy automotive cooling cycle

   The battery cooling and auxiliary heating cycles

   Hydraulic torque converter cooling cycle

■ Product information

    Ambient temperature:-40 to 125℃

    Medium temperature:-40 to 120℃

    Medium:Clear water,antifreeze

    Weight:0.98Kg

    Protection level:IP67

    Insulation level:H

    Service life:20000 hours

    Inlet and outlet:25mm

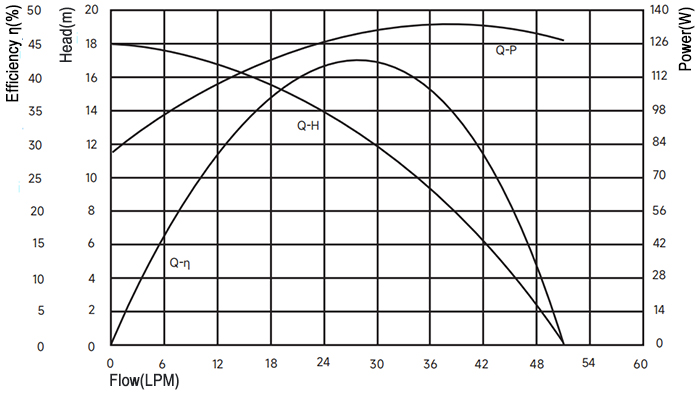

■ Curve

DC Car Auto Pump P8002.jpg


DC Car Auto Pump P8002.jpg



Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

13.5

8-20

6

10

50

81

48

24

12-30

3.7

10

50

88

48

24

12-30

5

12

58

120

50


DC Car Auto Pump P8002.jpg

■ FAQ

  How long is your delivery time?
     Sample order is 7~10 days.
     Bulk order is 15~20 days.
     If there is pumps in stock, it is 2 days.



   How long is your warranty of pump?
     Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



   What’s the payment method?
     Paypal or T/T,L/C .



   What certificates have your pumps passed?
     All our products have passed CE, RoHS, Reach.
     Some pumps met FDA, UL.


■ Specifications

Type

P8002

Rated Voltage

13.5V / 24V /24V

Voltage Range

8-20V / 12-3012-30V

Max Flow

50L/min, 50L/min58L/min

Max Lift

10m / 10m / 12m

Max Noise

48dB / 48dB  / 50dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

-40-120

Ambient Temperature

-40-125

Pump Theory

Centrifugal Pump

Medium

Water, antifreeze

Protection Level

IP67

Using Place

Vehicle

Power Consumption

81W / 88W /120W

Service Life

20000 hours

OD of inlet

25mm

OD of Outlet

25mm

Dimension

131*112*80mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

Al alloy + PPS

Customized functions

1, Dry-running protection

2, PWM speed adjustable

3, FG signal output

4, Locked-rotor protection

Remarks

Not self-priming


small electric water pumps 12v,electric water pump,small electric water pump,12v booster pump,small 12v water pump,12 volt high pressure water pump,12v high pressure water pump
