  • DC 24V Car Pump P8001

DC 24V Car Pump P8001

Volt: 24V
Head: 9-15m
Noise: ≤50dB(A)
Speed control ways:
Protection level: IP67
Function:
Medium temperature: 0-120℃



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                           未标题-2-1.jpg

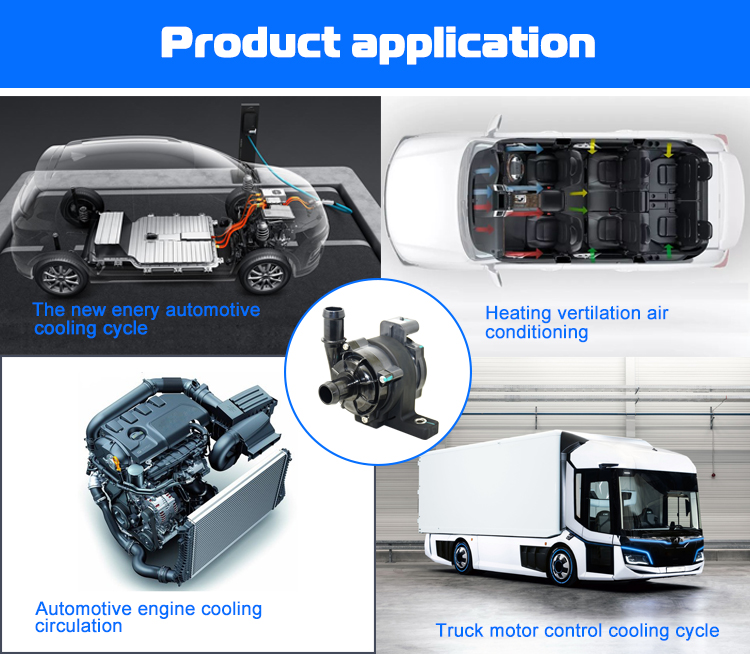

■ Product application

   Heating vertilation air conditioning

   Cold water cycle in car

   The new energy automotive cooling cycle

   The battery cooling and auxiliary heating cycles

   Hydraulic torque converter cooling cycle

■ Product information

    Ambient temperature:-40 to 125℃

    Medium temperature:-40 to 120℃

    Medium:Clear water,antifreeze

    Weight:0.97Kg

    Protection level:IP67

    Insulation level:H

    Service life:20000 hours

    Inlet and outlet:20mm

■ FAQ

  How long is your delivery time?
     Sample order is 7~10 days.
     Bulk order is 15~20 days.
     If there is pumps in stock, it is 2 days.



   How long is your warranty of pump?
     Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



   What’s the payment method?
     Paypal or T/T,L/C .



   What certificates have your pumps passed?
     All our products have passed CE, RoHS, Reach.
     Parts of pumps met FDA, UL.

■ Specifications

Type

P8001

Rated Voltage

24V / 24V

Voltage Range

12-30V / 12-30V

Max Flow

50L/min , 58L/min

Max Lift

10m / 12m

Max Noise

48dB / 50dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

-40-120

Ambient Temperature

-40-125

Pump Theory

Centrifugal Pump

Medium

Clear water

Protection Level

IP67

Using Place

Indoor

Power Consumption

88W / 120W

Service Life

20000 hours

OD of inlet

20mm

OD of Outlet

20mm

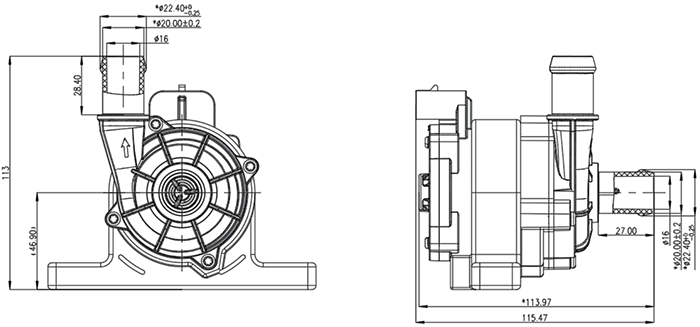

Dimension

131*112*80mm

Power supply

DC electricity /Battery / Solar panel

Structure

Single-stage

Material

Al alloy + PPS

Customized functions

1, Dry-running protection

2, PWM speed adjustable

3, FG signal output

4, Locked-rotor protection

Remarks

Not self-priming

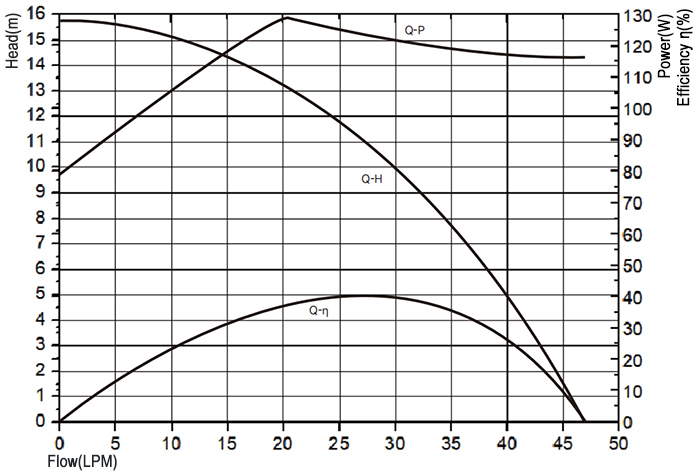

 Curve



12v hot water pump



Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

24

12-30

3.7

10

50

88

48

24

12-30

5

12

58

120

50


water pumps 12 volt

water pump for car,DC 24V Car Pump, DC 24V pump, 24v car pump, dc car pump,electric centrifugal pump,electric pumps for water

water pumps 12 volt,12v hot water pump,hot water pump 12v,12 dc water pump
