D2500 drone motor
Volt:
Head:
Noise:
Speed control ways:
Protection level:
Function:
Medium temperature:
Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com - Our Facebook is：Shenpeng Pump |

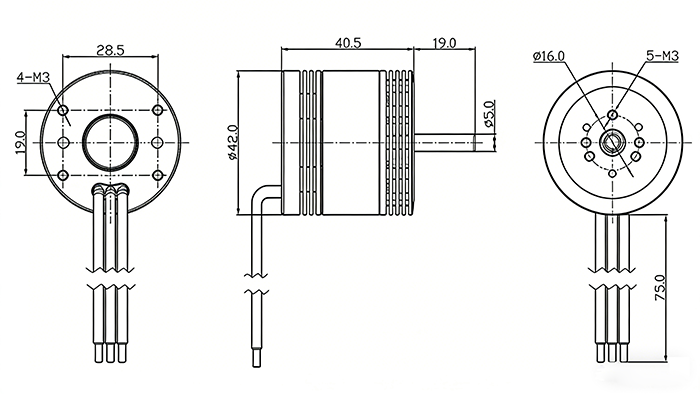

MOTOR OUTLINE DRAWING：
MOTOR PERFORMANCE DATA：
| MODEL | KV (rpm/V) | Voltage (V) | Prop | Load Current (A) | Pull (g) | Prower (W) | Efficiency (g/W) | LipoCell | Weight (g)Approx |
| D2500 | 330 | 22.2 | 1850 | 27.0 | 3200 | 600 | 5.3 | 3-6S | 158 |
| 500 | 22.2 | 1550 | 25.5 | 2920 | 566 | 5.2 | |||
| 1655 | 36.0 | 3950 | 800 | 4.9 |
