D2400 drone motor

Location:

Products

Volt:
Head:
Noise:
Speed control ways:
Protection level:
Function:
Medium temperature:

Remarks:

- We can offer OEM/ODM service.

- If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com

- Our Facebook is：Shenpeng Pump

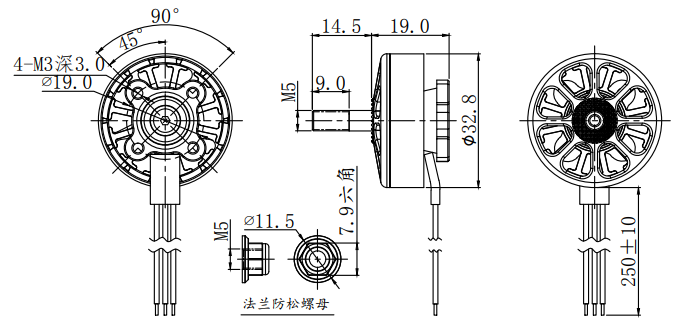

MOTOR OUTLINE DRAWING：

D2400 drone motor.png

MOTOR PERFORMANCE DATA：

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2400 1300KV	30	495	22.2	7035 three-bladed propeller	2.20	274	49	5.61	4-6S	49.5
	40	629	22.2		4.30	469	95	4.91
	50	726	22.2		6.70	664	149	4.46
	60	893	22.1		11.9	1000	263	3.80
	70	1005	22.1		17.1	1265	378	3.35
	80	1151	22.1		26.9	1716	594	2.89
	90	1236	22		35.0	2026	770	2.63
	100	1300	22		41.5	2230	913	2.44
The temperature of inside copper wire is 100°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2400 1600KV	30	594	22.2	7035 three-bladed propeller	2.90	273	64	4.24	4-6S	49.5
	40	748	22.2		5.40	443	120	3.70
	50	928	22.2		10.0	715	222	3.22
	60	1083	22.1		14.7	945	325	2.91
	70	1202	22.1		19.7	1133	435	2.60
	80	1385	22.1		31.4	1516	694	2.18
	90	1518	22		40.0	1798	880	2.04
	100	1600	22		46.8	2080	1030	2.02
The temperature of inside copper wire is 105°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2400 1700KV	30	632	22.2	6040 three-bladed propeller	2.90	284	64	4.41	4-6S	49.5
	40	796	22.2		5.30	461	118	3.92
	50	987	22.2		9.90	744	220	3.39
	60	1152	22.1		14.5	983	320	3.07
	70	1279	22.1		19.4	1178	429	2.75
	80	1473	22.1		30.8	1576	681	2.32
	90	1613	22		39.2	1868	862	2.17
	100	1700	22		45.8	2160	1008	2.14
The temperature of inside copper wire is 107°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)
