D2300 drone motor

Location:

Products

Volt:
Head:
Noise:
Speed control ways:
Protection level:
Function:
Medium temperature:

Remarks:

- We can offer OEM/ODM service.

- If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com

- Our Facebook is：Shenpeng Pump

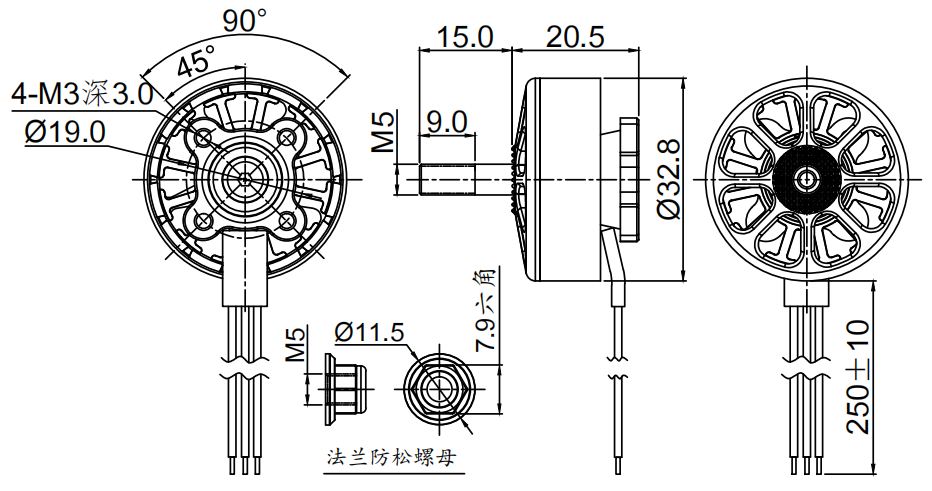

MOTOR OUTLINE DRAWING：

D2300 drone motor.png

MOTOR PERFORMANCE DATA：

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2300 1500KV	30	621	22.2	6035 three-bladed propeller	3.40	286	75	3.81	4-6S	53
	40	787	22.2		5.90	444	131	3.39
	50	930	22.2		9.50	646	211	3.06
	60	1061	22.1		13.7	881	303	2.91
	70	1206	22.1		19.9	1190	440	2.70
	80	1385	22.1		31.3	1596	692	2.31
	90	1465	22		37.6	1802	827	2.18
	100	1500	22		41.8	1930	920	2.10
The temperature of inside copper wire is 105°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2300 1500KV	30	621	22.2	7035 three-bladed propeller	3.73	314	83	3.78	4-6S	53
	40	787	22.2		6.50	488	144	3.39
	50	930	22.2		10.5	710	233	3.05
	60	1061	22.1		15.2	968	336	2.88
	70	1206	22.1		22.1	1307	488	2.68
	80	1385	22.1		34.7	1753	767	2.29
	90	1465	22		41.8	1979	920	2.15
	100	1500	22		46.5	2120	1023	2.07
The temperature of inside copper wire is 105°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2300 1900KV	30	840	22.2	6035 three-bladed propeller	4.61	331	85	3.89	4-6S	53
	40	990	22.2		7.10	459	131	3.50
	50	1187	22.2		11.8	699	218	3.21
	60	1373	22.1		17.7	952	325	2.93
	70	1524	22.1		24.2	1201	445	2.70
	80	1732	22.1		36.2	1575	666	2.36
	90	1834	22		45.5	1837	833	2.21
	100	1300	22		49.3	1920	902	2.13
The temperature of inside copper wire is 110°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)
