D2200 drone motor

Location:

Products

Volt:
Head:
Noise:
Speed control ways:
Protection level:
Function:
Medium temperature:

Remarks:

- We can offer OEM/ODM service.

- If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com

- Our Facebook is：Shenpeng Pump

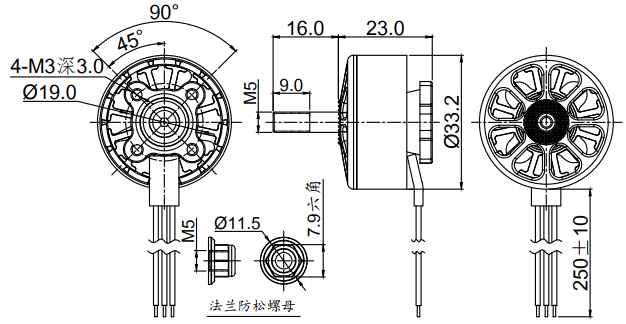

MOTOR OUTLINE DRAWING：

D2200 drone motor.png

MOTOR PERFORMANCE DATA：

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2200 900KV	30	340	22.2	8045 three-bladed propeller	2.06	296	46	6.43	4-6S	65
	40	431	22.2		4.02	521	89	5.75
	50	533	22.2		7.30	783	162	4.83
	60	614	22.1		11.6	1109	256	4.33
	70	693	22.1		17.3	1413	382	3.69
	80	795	22.1		36.9	1895	815	2.33
	90	879	22		36.3	2392	799	2.99
	100	900	22		41.0	2450	902	2.72
The temperature of inside copper wire is 103°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2200 1200KV	30	474	22.2	7040 three-bladed propeller	2.46	257	55	4.67	4-6S	65
	40	573	22.2		4.07	383	90	4.26
	50	671	22.2		6.34	548	141	3.89
	60	809	22.1		10.6	842	234	3.59
	70	934	22.1		16.3	1176	360	3.27
	80	1075	22.1		25.1	1584	555	2.85
	90	1173	22		33.8	1922	744	2.58
	100	1200	22		40.8	2050	898	2.28
The temperature of inside copper wire is 112°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2200 1350KV	30	575	22.2	7035 three-bladed propeller	3.03	336	67	5.01	4-6S	65
	40	740	22.2		6.15	585	137	4.27
	50	873	22.2		10.6	891	235	3.79
	60	1011	22.1		14.5	1122	320	3.51
	70	1136	22.1		21.6	1446	477	3.03
	80	1250	22.1		28.5	1699	630	2.69
	90	1313	22		40.7	1786	895	1.96
	100	1350	22		51.7	2100	1137	1.85
The temperature of inside copper wire is 90°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)
