D2100 drone motor

Location:

Products

Volt:
Head:
Noise:
Speed control ways:
Protection level:
Function:
Medium temperature:

Remarks:

- We can offer OEM/ODM service.

- If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com

- Our Facebook is：Shenpeng Pump

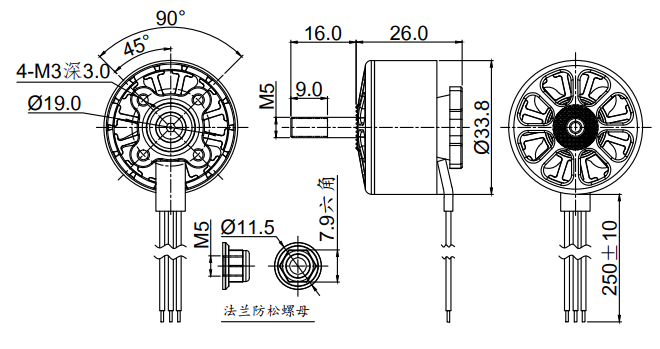

MOTOR OUTLINE DRAWING：

MOTOR PERFORMANCE DATA：

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2100 900KV	30	298	22.2	8045 three-bladed propeller	1.45	188	32	5.88	4-6S	76.5
	40	404	22.2		3.09	354	69	5.13
	50	507	22.2		5.69	587	126	4.66
	60	598	22.1		9.16	843	202	4.17
	70	681	22.1		13.5	1114	298	3.74
	80	782	22.1		20.8	1498	460	3.26
	90	868	22		28.6	1874	629	2.98
	100	900	22		32.8	2070	721	2.87
The temperature of inside copper wire is 95°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)

MODEL	Throttle (%)	KV (rpm/V)	Voltage (V)	Prop	Load Current (A)	Pull (g)	Prower (W)	Efficiency (g/W)	LipoCell	Weight (g)Approx
D2100 1120KV	30	388	18.5	9047 three-bladed propeller	2.64	295	49	6.02	4-6S	76.5
	40	539	18.5		13.1	589	120	4.91
	50	653	18.5		17.6	892	205	4.35
	60	743	18.4		22	1170	298	3.93
	70	859	18.4		35.2	1587	464	3.42
	80	976	18.4		37.8	2103	696	3.02
	90	1062	18.3		51.9	2528	950	2.66
	100	1120	18.3		60.3	2880	1103	2.61
The temperature of inside copper wire is 90°C after 100% throttle running 2 mins. (Ambient temperature is 28°C)
