36V Water heater water pump P5041

Published:2018-09-28

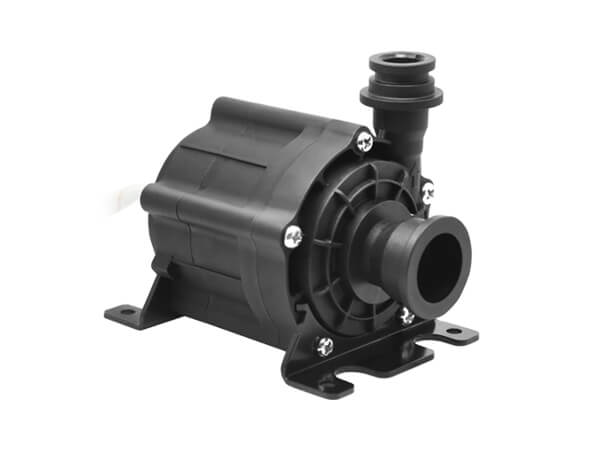

36V Water heater water pump P5041
Product Details:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                      未标题-2-1.jpg



36v heating pump.jpg



■Product application

 ● Wall-mounted solar water heater

 ● Dedicated pump for pressure-bearing water tanks

  Engineering separated type water heater

  Pressure-bearing piping pump


■Product information

   Weight:0.46kg

   Protection level:IP68

   Insulation level:F

   Service life:20000 hours

   Ambient temperature:-25 to 70

   Medium temperature:0-100

   Medium:Clear water

   Using place:Indoor


■ Curve

36v heating pump.jpg36v heating pump.jpg


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

36

26-47

1.3

9.5

15

47

40




■ FAQ

  ●How long is your delivery time?

    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?

    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?

    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?

    All our products have passed CE, RoHS, Reach.
    Some pumps met FDA, UL.



■ Specifications

Type

P5041

Rated Voltage

36V

Voltage Range

26-47V

Max Flow

15L/min

Max Lift

9.5m

Max Noise

40dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0 to 85℃

Ambient Temperature

0 to 70℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water

Protection Level

IP67

Using Place

Indoor

Power Consumption

47W

Service Life

20000 hours

OD of inlet

∅17.59

OD of Outlet

∅17.59

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, Submersible

3, Locked-rotor protection

Remarks

Not self-priming
