12V Vehicle Cooling DC Pump P6212

Published:2018-09-06

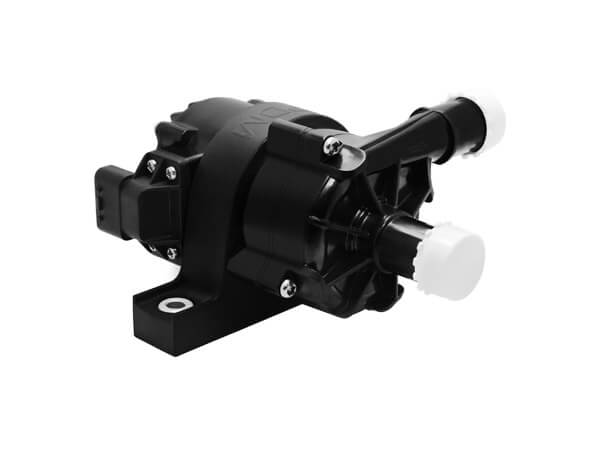

12V Vehicle Cooling DC Pump P6212
Product Details:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                         未标题-2-1.jpg





■ Product application

   Heating vertilation air conditioning

   New energy automotive cooling circuit


■ Product information

    Ambient temperature:-40 to 125℃

    Medium temperature:-40 to 120℃

    Medium:Clear water,antifreeze

    Weight:0.68Kg

    Protection level:IP67

    Insulation level:H

    Service life:20000 hours

    Inlet and outlet:20mm


■ FAQ

  How long is your delivery time?
     Sample order is 7~10 days.
     Bulk order is 15~20 days.
     If there is pumps in stock, it is 2 days.



   How long is your warranty of pump?
     Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



   What’s the payment method?
     Paypal or T/T,L/C .



   What certificates have your pumps passed?
     All our products have passed CE, RoHS, Reach.
     Parts of pumps met FDA, UL.


■ Specifications

Type

P6212

Rated Voltage

12V/24V

Voltage Range

8-20V / 12-30V

Max Flow

35L/min, 35L/min

Max Lift

9m / 9m

Max Noise

40dB / 40dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

-40-120

Ambient Temperature

-40-125

Pump Theory

Centrifugal Pump

Medium

Water, antifreeze

Protection Level

IP67

Using Place

Vehicle

Power Consumption

55W / 55W

Service Life

20000 hours

OD of inlet

20mm

OD of Outlet

20mm

Dimension

134*120*80mm

Power supply

Battery / DC Electricity

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, PWM speed adjustable

3, FG signal output

4, Locked-rotor protection

Remarks

Not self-priming

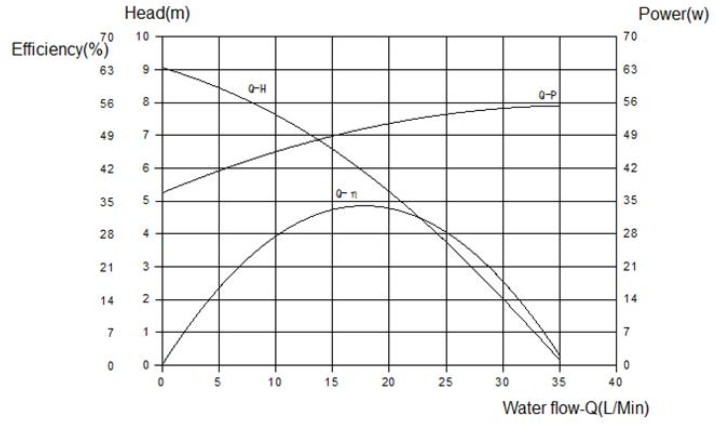

 Curve

12v dc pump price

12v dc water pump price


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

12

8-20

4.6

9

35

55

40

24

12-30

2.4

9

35

55

40
