12V/24V Auto DC Pump P6216

Published:2018-09-06

12V/24V Auto DC Pump P6216
Product Details:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                          未标题-2-1.jpg

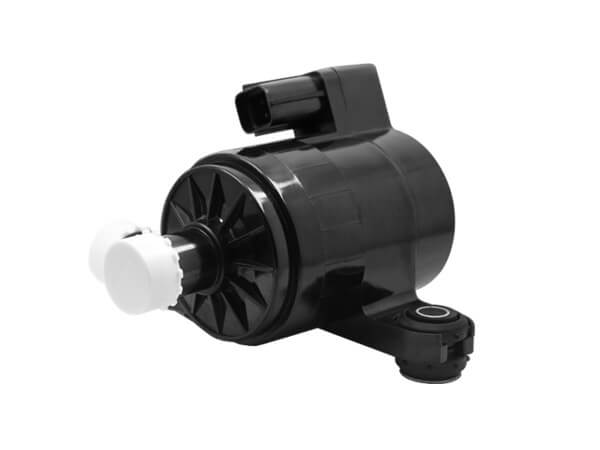

Auto DC Pump P6216.jpg


■ Product application

- Heating vertilation air conditioning

- New energy automotive cooling circuit

■ Product information

- Ambient temperature:-40 to 125℃

- Medium temperature:-40 to 120℃

- Medium:Clear water,antifreeze

Weight:0.65Kg

- Protection level:IP67

- Insulation level:H

- Service life:20000 hours

- Inlet and outlet:22mm


■ Curve

Auto DC Pump P6216.png


Auto DC Pump P6216.jpg


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

12

8-20

6

15

43

72

45


■ FAQ

  How long is your delivery time?
    - Sample order is 7~10 days.
    - Bulk order is 15~20 days.
    - If there is pumps in stock, it is 2 days.



   How long is your warranty of pump?
    -Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



   What’s the payment method?
    - Paypal or T/T,L/C .



   What certificates have your pumps passed?
    - All our products have passed CE, RoHS, Reach.
    - Some pumps met FDA, UL.


 Specifications

Type

P6216

Rated Voltage

12V

Voltage Range

8-20V

Max Flow

43L/min

Max Lift

15m

Max Noise

45dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

-40-120

Ambient Temperature

-40-125

Pump Theory

Centrifugal Pump

Medium

Water, antifreeze

Protection Level

IP67

Using Place

Vehicle

Power Consumption

72W

Service Life

20000 hours

OD of inlet

22mm

OD of Outlet

22mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, PWM speed adjustable

3, FG signal output

4, Locked-rotor protection

Remarks

Not self-priming
