24V Intelligent Toilet DC Pump P6066

Published:2018-09-06

24V Intelligent Toilet DC Pump P6066
Product Details:






  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                      未标题-2-1.jpg




24v toilet water pump


■Product application

   Intelligent toilet without water tank


■Product information

   Large water flow,low power consumption

   Special quiet think about happy

   Protection level:IP68

   Insulation level:E

   Lifetime: Start and stop 100000 times

   Ambient temperature:-25-50℃

   Medium temperature:0-50℃

   Medium:Clear water

   Use place:Indoor


■ FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Some pumps met FDA, UL.


 Specifications


Type

P6066

Rated Voltage

24V

Voltage Range

12-30V

Max Flow

23L/min

Max Lift

14.5m

Max Noise

50dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0-50

Ambient Temperature

-25-50℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water

Protection Level

IP68

Using Place

Indoor

Power Consumption

72W

Lifetime

Start and stop 100000 times

OD of inlet

G3/4 inch

OD of Outlet

G3/4 inch

Power supply

Battery / DC Electricity / Solar panel

Structure

Single-stage

Material

XYRON PPE

Customized functions

1, Dry-running protection

2, Locked-rotor protection

Remarks

Not self-priming

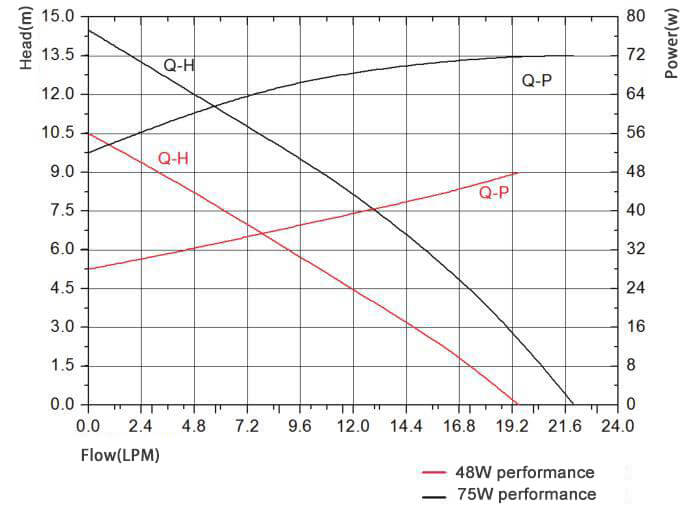

■ Curve



Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

        24

12-30

3

14.5

23

72

      ≤50
