12V/24V Smart Toilet Water Pump P4550

Published:2018-09-06

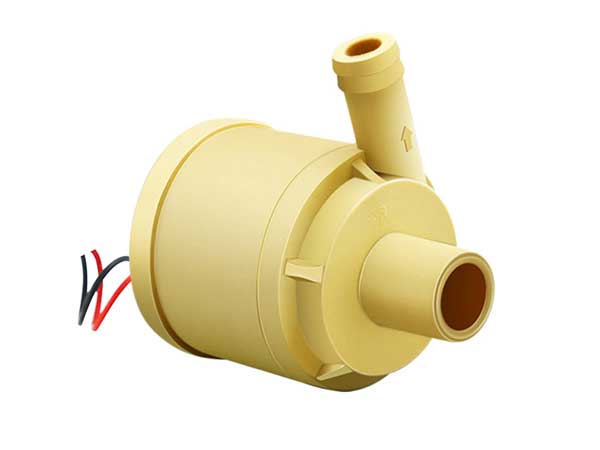

12V/24V Smart Toilet Water Pump P4550
Product Details:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                      未标题-2-1.jpg



intelligent toilet pump


■Product application:

   Intelligent toilet without water tan

   Other need for pressurizing and circulating refrigeration equipment


■Product information:

   Weight:0.24kg

   Protection level:IP68

   Insulation level:E

   Service life:20000 hours

   Ambient temperature:-25 to 50℃

   Medium temperature:0-50℃

   Medium:Clear water

   Using place:Indoor

 FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Parts of pumps met FDA, UL.


■ Specifications

Type

P4550

Rated Voltage

12V/24V

Voltage Range

8-20V / 12-30V

Max Flow

19L/min, 21L/min

Max Lift

4.5m / 5.5m

Max Noise

35dB / 40dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0 to 50℃

Ambient Temperature

-25 to 50℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water

Protection Level

IP68

Using Place

Indoor

Power Consumption

18W / 26W

Service Life

20000 hours

OD of inlet

∅20.8mm

OD of Outlet

∅14.8mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

XYRON PPE

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming


■ Curve




Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

12

8-20

1.5

4.5

19

18

35

24

12-30

1.08

5.5

21

26

≤40
