24V Solar Water DC Pump P6087

Published:2018-09-06

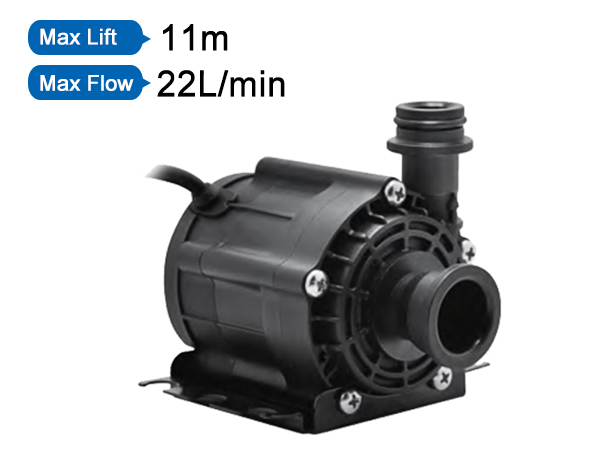

24V Solar Water DC Pump P6087
Product Details:






  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                      未标题-2-1.jpg





■Product application:

The solar water heater

The split-type electric water heater

The medical equipment,machine tool equipment

Communication base station and central air conditioning drain


■Product information:

Weight:0.5kg

Protection level:IP68

Insulation level:F

Service life:20000 hours

Ambient temperature:-25 to +70 ℃

Medium temperature:0 to +100℃

Medium:Clear water

Using place:Indoor

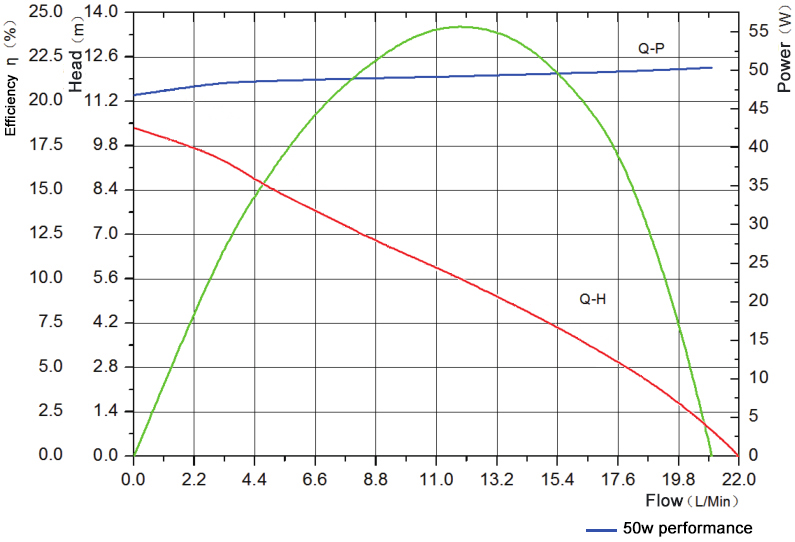

■ Curve






Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

24

8-20

2.2

11

20

53

40

36

24-50

1.5

10

22

54

40



 FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Some pumps met FDA, UL.


■ Specifications

Type

P6087

Rated Voltage

24V / 36V

Voltage Range

8-20V / 24-50V

Max Flow

20L/min, 22L/min

Max Lift

11m / 10m

Max Noise

40dB / 40dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0 ~ +100℃

Ambient Temperature

-25 ~ +70℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water

Protection Level

IP68

Using Place

Indoor

Power Consumption

53W / 54W

Service Life

20000 hours

OD of inlet

30mm

OD of Outlet

25mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming
