12V/24V Solar Water Pump P6017

Published:2018-09-06

12V/24V Solar Water Pump P6017
Product Details:






  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                      未标题-2-1.jpg





12v solar pump


■Product application:

The air heater

The solar water heater

The residential and commercial straight drinking machine


■Product information:

Weight:0.45kg

Protection level:IP68

Insulation level:E

Service life:15000 hours

Ambient temperature:-25 to +70℃

Medium temperature:0 to +100℃

Medium:Clear water

Using place:Indoor

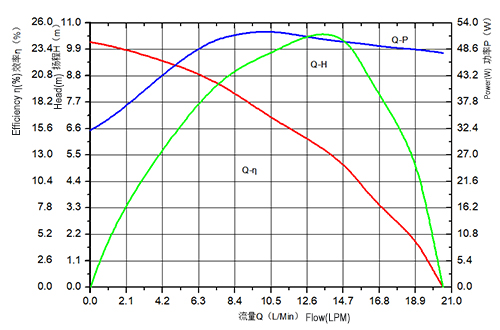

■ Curve

12v solar pump



Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

12

8-20

3

8

17

36

40

24

12-30

2.5

12.5

22

60

45


 FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Some pumps met FDA, UL.

 Specifications

Type

P6017

Rated Voltage

12V / 24V / 48V

Voltage Range

8-20V / 12-30V / 36-55V

Max Flow

17L/min, 20L/min, 21L/min

Max Lift

8m / 11m / 12m

Max Noise

40dB / 45dB / 48dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

Y

Liquid Temperature

0 ~ +100℃

Ambient Temperature

-25 ~ +70℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water

Protection Level

IP68

Using Place

Indoor / Outdoor

Power Consumption

36W / 53W / 62W

Service Life

20000 hours

OD of inlet

1/2 inch

OD of Outlet

1/2 inch

Dimension

108*86*60mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPE

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming


dc water pump
