12V/24V BLDC Water Cooling Pump P4504

Published:2018-09-06

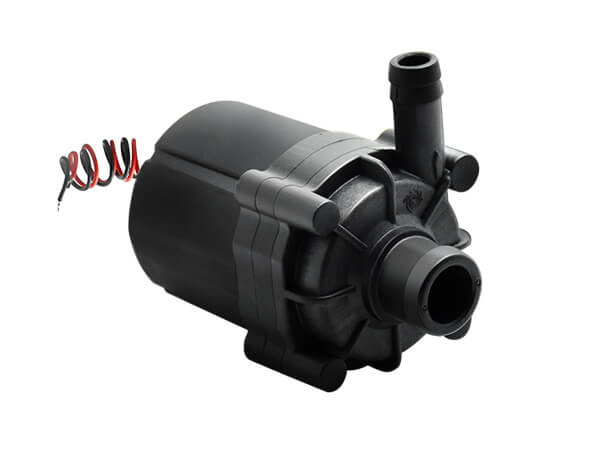

12V/24V BLDC Water Cooling Pump P4504
Product Details:






  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                           1625717298861133.jpg




P4504 Application Industry.jpg


■Product application

   The medium and small laser chillers

   Communication stations,air conditioning drainage

   The LED lamp,semiconductor cycle refrigeration

   Machine tool equipment,medical equipment circulation cooling


■ Curve

P4504 Dimensional Drawing.jpg


P4504 Curve Chart.jpg


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

12

8-20

1.4

6

10

17

35

24

12-30

1.3

9

12

31

40

48

36-55

0.7

9

12

33.6

48


FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Sme pumps met FDA, UL.

■ Specifications

Type

P4504

Rated Voltage

12V / 24V / 48V

Voltage Range

8-20V / 12-30V / 28-55V

Max Flow

10L/min, 12L/min, 12L/min

Max Lift

6m / 9m / 9m

Max Noise

40dB / 45dB / 48dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0 ~ +100℃

Ambient Temperature

-25 ~ +70℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water

Protection Level

IP67

Using Place

Indoor / Outdoor

Power Consumption

17W / 30W / 35W

Service Life

20000 hours

OD of inlet

∅18.0mm

OD of Outlet

∅10.9mm

Dimension

76*68*54mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

XYRON PPE

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming
