12V Smart Toilet Pump P5032

Published:2018-09-06

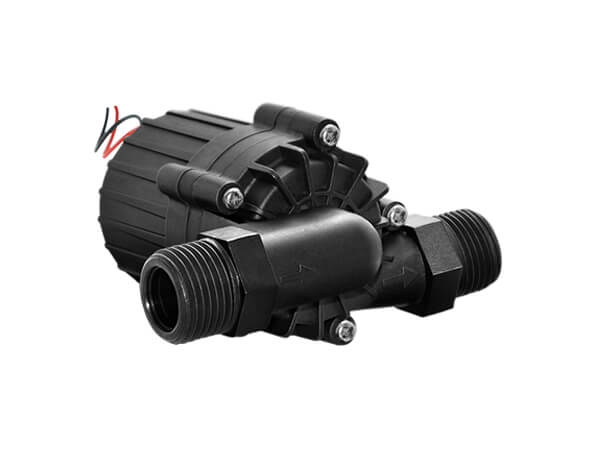

12V Smart Toilet Pump P5032
Product Details:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                      未标题-2-1.jpg



Toilet Pump


■Product application

  Intelligent toilet without water tank

  Other need for pressurizing and circulating refrigeration equipment


■Product information

  Weight:0.26kg

  Protection level:IP68

  Insulation level:F

  Service life:20000 hours

  Ambient temperature:-25 to 50℃

  Medium temperature:0-50℃

  Medium:clear water

  Using place:Indoor

■ FAQ

  ●How long is your delivery time?
     Sample order is 7~10 days.
     Bulk order is 30~35 days.
     If there is pumps in stock, it is 2 days.



   How long is your warranty of pump?
     Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



   What’s the payment method?
     Paypal or T/T,L/C .



   What certificates have your pumps passed?
     All our products have passed CE, RoHS, Reach.
     Parts of pumps met FDA, UL.

 Specifications

Type

P5032

Rated Voltage

12V

Voltage Range

8-18V

Max Flow

25L/min

Max Lift

12m

Max Noise

45dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0 to 50℃

Ambient Temperature

-25 to 50℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water

Protection Level

IP68

Using Place

Indoor

Power Consumption

50W

Service Life

20000 hours

OD of inlet

16.5mm

OD of Outlet

17.2mm

Dimension

88.7*72.5*50mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming



■ Curve

Toilet PumpToilet Pump


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

12

8-18

4.2

12

25

50

≤45
