12V Heater Mattress Pump P4525

Published:2018-09-06

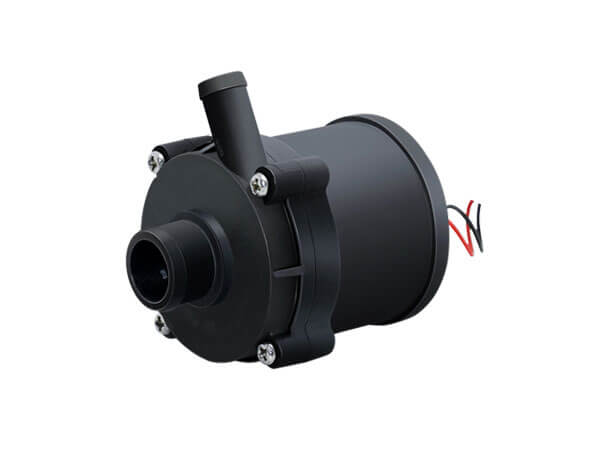

12V Heater Mattress Pump P4525
Product Details:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                              未标题-2-1.jpg





Product application

● The small boiler

● Plumbing mattress

● PC and LED cooling



Product information

● Weight:0.14Kg

● Protection level:IP68

● Insulation level:E

● Service life:10000 hours

● Ambient temperature:-25 to 70℃

● Medium temperature:0 to 70℃

● Medium:Clear water

● Using place:Indoor


■ Curve

micro pump 12v

12v dc brushless pump


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

12

8-13.5

0.25

1.0

6

3

23

12

8-13.5

0.34

1.8

7

4

26



■ FAQ

  How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



   How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



   What’s the payment method?
    Paypal or T/T,L/C .



   What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    -Parts of pumps met FDA, UL.


■ Specifications


Type


P4525


Rated Voltage


12V

12V


Voltage Range


8-13.5V

8-13.5V


Max Flow


6L/min

7L/min


Max Lift


1m

1.8m


Max Noise


23dB

 26dB


Motor Type


DC Brushless Motor

DC Brushless Motor


Food Grade(Y/N)


N

N


Liquid Temperature


0-70℃

0-70


Ambient Temperature


-25-70℃

-25-70


Pump Theory


Centrifugal Pump

Centrifugal Pump


Medium


Hot or cold water

Hot or cold water


Protection Level


IP68

IP68


Using Place


Indoor

Indoor


Power Consumption


3W

4W


Service Life


15000 hours

15000 hours


OD of inlet


∅17.7mm

∅17.7mm


OD of Outlet


∅10.8mm

∅10.8mm


Dimension


68.7*66*46mm

68.7*66*46mm


Power supply


Battery / Electric / Solar panel

Battery / Electric / Solar panel


Structure


Single-stage

Single-stage


Material


XYRON PPE

XYRON PPE

Customized functions

1, Dry-running protection

2, Submersible

3, FG signal output

4, Locked-rotor protection

1, Dry-running protection

2, Submersible

3, FG signal output

4, Locked-rotor protection


Remarks


Not self-priming

Not self-priming
