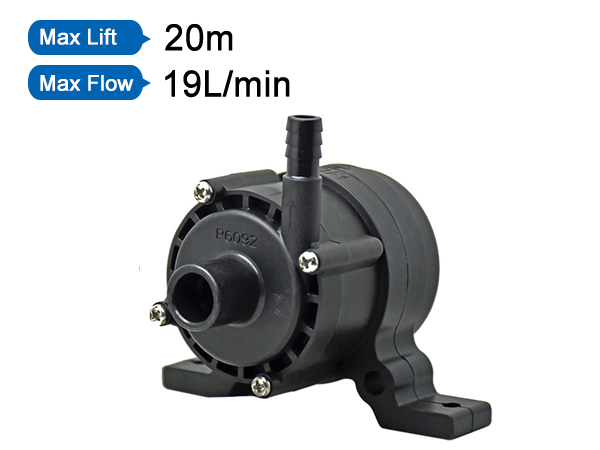

24V Booster DC Water Pump P6092
Published:2018-07-18
Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com - Our Facebook is：Shenpeng Pump |
■Product application
The medium and small laser chillers
Beauty equipment,medical equipment
LED cooling,semiconductor cooling
Other equipments that need pressurization and refrigeration
Ambient temperature:-20 to 70℃
Medium temperature:0 to 70℃
Medium:clear water
Using place:Indoor
Weight:0.49kg
Protection level:IPX7
Insulation level:F
Service life:20000 hours
■ FAQ
●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
●How long is your warranty of pump?
Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.
●What’s the payment method?
Paypal or T/T，L/C .
●What certificates have your pumps passed?
All our products have passed CE, RoHS, Reach.
Some pumps met FDA, UL.
■ Specifications
Type | P6092 |
Rated Voltage | 24V / 24V (12volt / 24volt) |
Voltage Range | 12-32V / 12-32V |
Max Flow | 16L/min, 19L/min |
Max Lift | 16m / 20m |
Max Noise | 40dB / 40dB |
Motor Type | DC Brushless Motor |
Food Grade(Y/N) | N |
Liquid Temperature | 0 to 70℃ |
Ambient Temperature | -20 to 70℃ |
Pump Theory | Centrifugal Pump |
Medium | Hot or cold water |
Protection Level | IPX7 |
Using Place | Indoo |
Power Consumption | 46W / 72W |
Service Life | 20000 hours |
OD of inlet | 20.23mm |
OD of Outlet | 11.3mm |
Power supply | Battery / Electric / Solar panel |
Structure | Single-stage |
Material | XYRON PPE |
Customized functions | 1, Dry-running protection 2, PWM speed adjustable 3, Locked-rotor protection |
Remarks | Not self-priming |
■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Poweer | Max Noise |
V | V | A | m | L/min | W | dB（A） |
24 | 12-32 | 1.9 | 16 | 16 | 46 | ≤40 |
24 | 12-32 | 3.0 | 20 | 19 | 72 | ≤40 |
