As the "heart" of a chiller's circulation system, the operating efficiency of a chiller water pump directly determines the cooling effect and stability of equipment like laser machines and cutting tools. Shenpeng Technology, a manufacturer specializing in R&D and production of DC brushless pumps, takes you through the core structure to operational logic, offering an in-depth analysis of the chiller water pump's working principle to reveal the key mechanisms behind this critical component.

1. Core Structural Components of Chiller Water Pumps

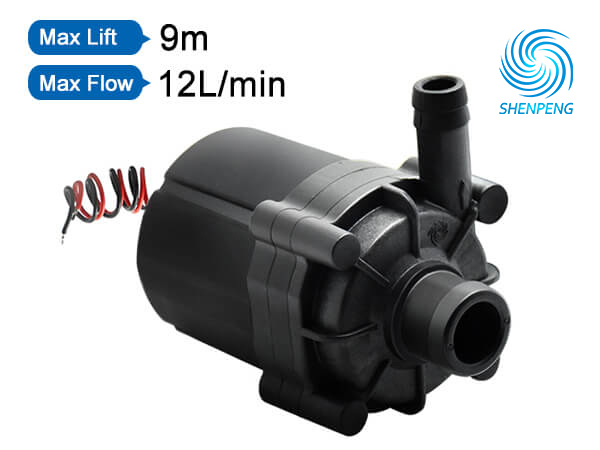

A chiller water pump mainly consists of a DC brushless motor, impeller, pump casing, water inlet, water outlet, and control system. The DC brushless motor, as the power source, adopts electronic commutation technology, eliminating traditional brushes to effectively reduce operational losses and noise. The impeller, optimized through fluid dynamics, typically features a closed structure to maximize water flow efficiency. The internal flow channel of the pump casing is precisely calculated to minimize water resistance, ensuring stable liquid delivery under high pressure.

2. Power Transmission and Fluid Conveyance Process

When the chiller starts, the control system inputs DC power to the DC brushless motor. The motor rotor rotates at high speed under magnetic field action, driving the impeller to rotate synchronously. The centrifugal force generated by the rotating impeller creates a pressure difference inside the pump chamber: the water inlet side, with reduced pressure, draws coolant from the chiller's water tank; the water outlet side, with increased pressure, forces the coolant through pipes to the heat-generating components of equipment like laser machines and cutting tools.

After heat exchange, the coolant’s temperature rises. It then flows back to the chiller’s water tank through the return pipe, is cooled by refrigeration components, and re-enters the circulation. During this process, the speed of the DC brushless motor can be precisely adjusted via PWM signals, enabling dynamic adaptation of flow rate and head to meet real-time cooling needs of different devices.

3. Key Advantages of DC Brushless Technology

Compared to traditional brushed pumps, Shenpeng Technology’s DC brushless chiller water pumps offer significant technical advantages:

High Efficiency & Energy Saving: The conversion efficiency of brushless motors exceeds 85%, saving over 30% more energy than brushed motors. This drastically reduces long-term energy costs for chillers.

Extra-Long Service Life: Free from brush wear, combined with high-precision bearings, the service life reaches over 20,000 hours—3-5 times that of traditional pumps.

Stability & Reliability: Equipped with triple protection (overload, overvoltage, overcurrent), it automatically shuts down during abnormal flow or pipe blockages to prevent equipment damage.

Low-Noise Operation: Differentiated noise reduction designs for different power models. Small-power models operate at below 35 decibels, while high-power models maintain noise between 55-60 decibels depending on load—all meeting industrial equipment noise control standards.

4. Synergistic Mechanism with Cooling Systems

The performance parameters of chiller water pumps must precisely match the entire cooling system. For example, cooling the laser head of a laser cutting machine requires frequent start-stops, so the pump needs fast response capabilities. Large industrial laser machines, on the other hand, demand high head (over 15 meters) and large flow rates (over 50L/min) to handle continuous high-temperature loads.

As a professional manufacturer, Shenpeng Technology customizes pump parameters—including flow rate, head, voltage (12V/24V/48V options), and interface specifications—based on chiller manufacturers’ needs. This ensures optimal synergy between the pump and cooling system, avoiding inefficient scenarios like "overpowered" or "underpowered" operation.

Through this deep dive into the chiller water pump’s working principle, it’s clear that DC brushless technology is key to enhancing cooling system performance. With years of expertise in the chiller water pump field, Shenpeng Technology independently controls everything from core component R&D to full machine production, providing professional and reliable product solutions for chiller manufacturers. If you need customized chiller circulation pumps for laser machines, cutting tools, or other equipment, feel free to contact us anytime.
