12V/24V Home Dispenser DC Pump P6017
Volt: 12V/24V/48V
Head: 9-15m
Noise: ≤48dB(A)
Speed control ways: PWM
Protection level: IP68
Function: Locked-rotor protection
Medium temperature: 0-100℃
Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com - Our Facebook is：Shenpeng Pump |
■Product application:
Different parts of the application
The air heater
The solar water heater
The residential and commercial straight drinking machine
■Product information:
Weight:0.45kg
Protection level:IP68
Insulation level:E
Service life:15000 hours
Ambient temperature:-25 to 70℃
Medium temperature:0-100℃
Medium：Clear water
Using place:Indoor
■FAQ
●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
●How long is your warranty of pump?
Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.
●What’s the payment method?
Paypal or T/T，L/C .
●What certificates have your pumps passed?
All our products have passed CE, RoHS, Reach.
Some pumps met FDA, UL.
■ Specifications
Type | P6017 |
Rated Voltage | 12V / 24V / 48V |
Voltage Range | 8-20V / 12-30V / 36-55V |
Max Flow | 17L/min, 20L/min, 21L/min |
Max Lift | 8m / 11m / 12m |
Max Noise | 40dB / 45dB / 48dB |
Motor Type | DC Brushless Motor |
Food Grade(Y/N) | Y |
Liquid Temperature | 0-100℃ |
Ambient Temperature | -25-70℃ |
Pump Theory | Centrifugal Pump |
Medium | Hot or cold water |
Protection Level | IP68 |
Using Place | Indoor / Outdoor |
Power Consumption | 36W / 53W / 62W |
Service Life | 20000 hours |
OD of inlet | 1/2 inch |
OD of Outlet | 1/2 inch |

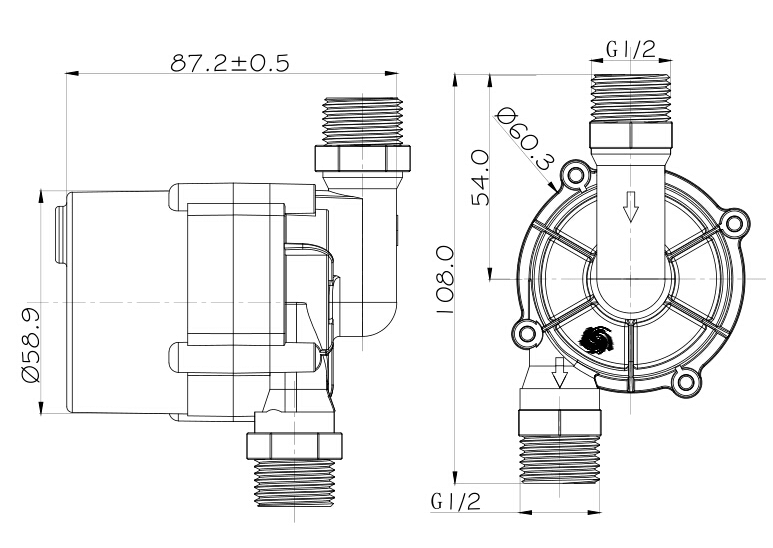

Dimension | 108*86*60mm |
Power supply | Battery / Electric / Solar panel |
Structure | Single-stage |
Material | PPE |
Customized functions | 1, Dry-running protection 2, Submersible 3, PWM speed adjustable 4, FG signal output 5, Locked-rotor protection |
Remarks | Not self-priming |
■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Poweer | Max Noise |
V | V | A | m | L/min | W | dB（A） |
12 | 8-20 | 3 | 8 | 17 | 36 | ≤40 |
24 | 12-30 | 2.2 | 11 | 20 | 53 | ≤45 |
48 | 36-55 | 1.3 | 22 | 21 | 62 | ≤48 |
