  • Solar Water DC Pump P4521

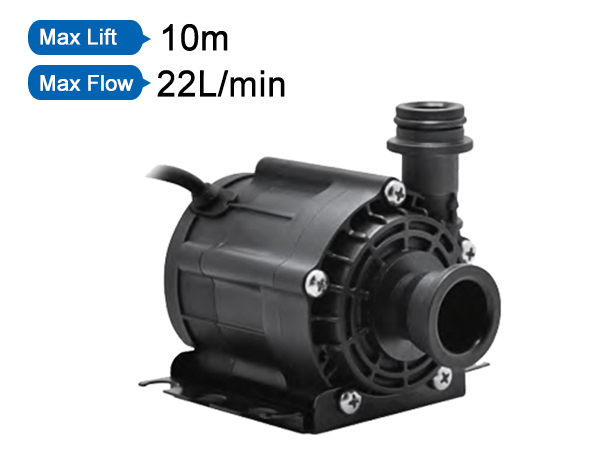

Solar Water DC Pump P4521

Volt: 12V/24V
Head: 3-9m
Noise: ≤40dB(A)
Speed control ways: PWM
Protection level:
Function: Locked-rotor protection
Medium temperature: 0-100℃



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


          I want to Buy Samples                I want to ask technical questions



12v dc mini water pump

■Product application:

The solar water heater

The split-type electric water heater

The medical equipment,machine tool equipment

Communication base station and central air conditioning drain


■Product information:

Weight:0.22kg

Protection level:IP55

Insulation level:E

Service life:15000 hours

Ambient temperature:-0 to 70 ℃

Medium temperature:0-100℃

Medium:Clear water,antifreeze

Using place:Indoor

 FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Parts of pumps met FDA, UL.

■ Specifications

Type

P4521

Rated Voltage

12V / 24V

Voltage Range

8-20V / 12-30V

Max Flow

10L/min, 13L/min

Max Lift

5m / 8m

Max Noise

40dB / 45dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0-100℃

Ambient Temperature

-0-70℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water, oil, antifreeze

Protection Level

IP55 / IP68

Using Place

Indoor / Outdoor

Power Consumption

13W / 30W

Service Life

20000 hours

OD of inlet

1/4 inch

OD of Outlet

1/4 inch

Dimension

84.1*46*47mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming

■ Curve

12v dc mini water pump

12v dc mini water pump



Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

12

8-20

1.2

5

10

13

40

24

12-30

1.2

8

13

30

45
