  • New Energy Car Pump P8008

New Energy Car Pump P8008

Volt: 12V/24V
Head:
Noise:
Speed control ways:
Protection level:
Function:
Medium temperature:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


          I want to Buy Samples                I want to ask technical questions

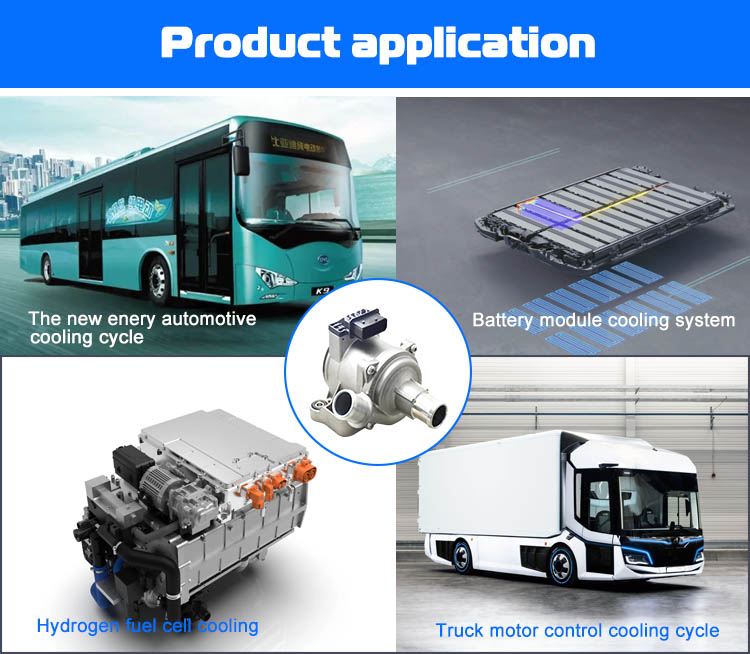

■ Product application

   Car’s warm air conditioner cycles

   Cold water cycle in car

   The new energy automotive cooling cycle

   The battery cooling and auxiliary heating cycles

   Hydraulic torque converter cooling cycle



■ Product information

    Ambient temperature:-40 to 125℃

    Medium temperature:-40 to 120℃

    Medium:Clear water/antifreeze

    Using place: Indoor

    Weight:0.76Kg

    Insulation level:H

    Service life:20000 hours

    Inlet and outlet:20mm


■ FAQ

  ●How long is your delivery time?
     Sample order is 7~10 days.
     Bulk order is 15~20 days.
     If there is pumps in stock, it is 2 days.



   ●How long is your warranty of pump?
     Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



   ●What’s the payment method?
     Paypal or T/T,L/C .



   ●What certificates have your pumps passed?
     All our products have passed CE, RoHS, Reach.
     Parts of pumps met FDA, UL.

 Specifications

Type

P8008

Rated Voltage

12V / 24V

Voltage Range

8-20V / 12-32V

Max Flow

41L/min, 41L/min

Max Lift

9m / 9m

Max Noise

48dB / 48dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

-40-125

Ambient Temperature

-40-125

Pump Theory

Centrifugal Pump

Medium

Water, antifreeze

Protection Level

IP67

Using Place

Vehicle,  intelligent toilet

Power Consumption

72W / 72W

Service Life

20000 hours

OD of inlet

20mm

OD of Outlet

20mm

Dimension

133*102*100mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, PWM speed adjustable

3, FG signal output

4, Locked-rotor protection

Remarks

Not self-priming

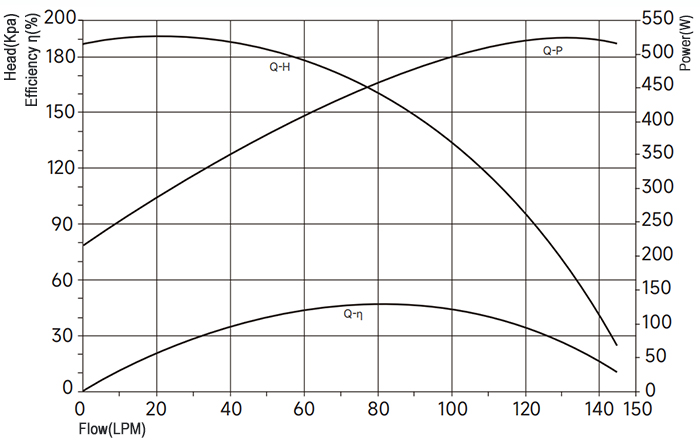

 Curve

12v micro pump

Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

12

8-20

6

9

41

72

48

24

12-30

3

9

41

72

48

12

8-20

9

12

48

108

50
