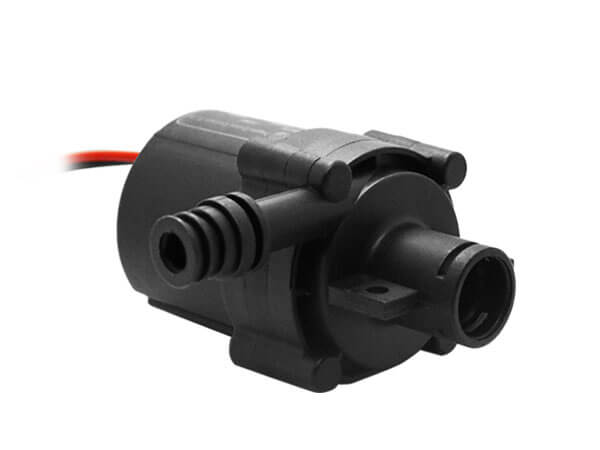

Gas Heater Pump P4506
Published:2018-09-18

Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com I want to Buy Samples I want to ask technical questions |
■Product application:
Applied to the gas water heater
Energy saving,safe environmental protection,long service life
Applied to the instant electric water heater
That is hot,the circulation of hot water
Applied to the gas water heater
Outdoor bathing,the water pump brings you more comfortable enjoy
■Product information:
Weight:0.20kg
Protection level:IP55
Insulation level:E
Service life:15000hours
Ambient temperature:-25 to 70℃
Medium temperature:0-70℃
Medium:Clear water,antifreeze
Using place:Indoor
■ FAQ
●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
●How long is your warranty of pump?
Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.
●What’s the payment method?
Paypal or T/T,L/C .
●What certificates have your pumps passed?
All our products have passed CE, RoHS, Reach.
Parts of pumps met FDA, UL.
■ Specifications
Type | P4506 |
Rated Voltage | 24V |
Voltage Range | 12-30V |
Max Flow | 10L/min |
Max Lift | 9m |
Max Noise | 45dB |
Motor Type | DC Brushless Motor |
Food Grade(Y/N) | N |
Liquid Temperature | 0-70℃ |
Ambient Temperature | -25-70℃ |
Pump Theory | Centrifugal Pump |
Medium | Hot or cold water, oil, antifreeze |
Protection Level | IP55 / IP68 |
Using Place | Indoor / Outdoor |
Power Consumption | 30W |
Service Life | 20000 hours |
OD of inlet | ∅19.0mm |
OD of Outlet | ∅12.3mm |
Dimension | 80.5*73.9*45mm |
Power supply | Battery / Electric / Solar panel |
Structure | Single-stage |
Material | XYRON PPE |
Customized functions | 1, Dry-running protection 2, Submersible 3, PWM speed adjustable 4, FG signal output 5, Locked-rotor protection |
Remarks | Not self-priming |
■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Poweer | Max Noise |
V | V | A | m | L/min | W | dB(A) |
24 | 12-30 | 1.2 | 9.0 | 10 | 30 | ≤45 |
