12V/24V Heater Equipment Pump P6077

Published:2018-09-07

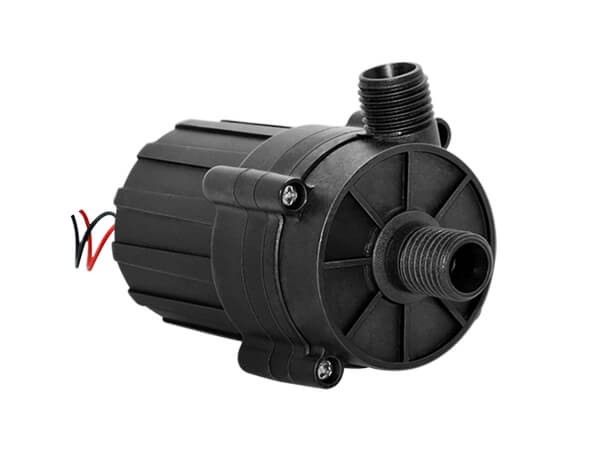

12V/24V Heater Equipment Pump P6077
Product Details:






  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                      未标题-2-1.jpg




12v heat pump



■Product application

   Applied to the gas water heater

   Energy saving,safe environmental protection,long service life

   Applied to the instant electric water heater

   That is hot,the circulation of hot water

   Applied to the gas water heater

   Outdoor bathing,the water pump brings you more comfortable enjoy


■Product information

   Weight:0.46kg

   Protection level:IP68

   Insulation level:F

   Service life:20000 hours

   Ambient temperature:-25 to 70

   Medium temperature:0-100

   Medium:Clear water

   Using place:Indoor



■ Curve12v heat pump12v heat pump

Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

12

8-20

3

8

17

36

40

24

12-30

2.2

11

20

53

45



■ FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Some pumps met FDA, UL.



 Specifications

Type

P6077

Rated Voltage

12V / 24V

Voltage Range

8-20V / 12-30V

Max Flow

17/min, 20L/min

Max Lift

8m / 11m

Max Noise

40dB / 45dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0 to 100℃

Ambient Temperature

-25 to 70℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water

Protection Level

IP68

Using Place

Indoor

Power Consumption

36W / 53W

Service Life

20000 hours

OD of inlet

G1/2

OD of Outlet

G1/2

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming
