12V/24V Brushless Solar Water Pump P4520

Published:2018-09-06

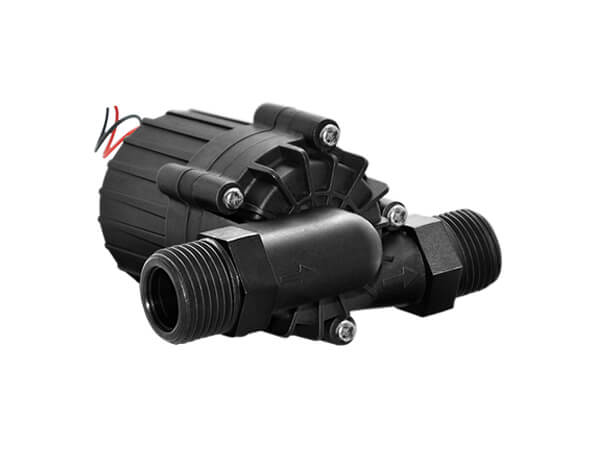

12V/24V Brushless Solar Water Pump P4520
Product Details:






  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                      未标题-2-1.jpg




hot water pump 12v


■Product application:

Engineering separated type water heater

Pressure-bearing piping pump


■Product information:

Weight:0.24kg

Protection level:IP55

Insulation level:E

Service life:15000 hours

Ambient temperature:-25 to 70 ℃

Medium temperature:0-100℃

Medium:Clear water

Using place:Indoor



■ Curve

hot water pump 12vhot water pump 12v


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

12

8-20

1.2

5

10

13

40

24

12-30

1.2

8

13

30

45


hot water pump 12v



 FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Some pumps met FDA, UL.

 Specifications

Type

P4520

Rated Voltage

12V / 24V

Voltage Range

8-20V / 12-30V

Max Flow

10L/min, 13L/min

Max Lift

5m / 8m

Max Noise

40dB / 45dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0-100℃

Ambient Temperature

-25-70℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water

Protection Level

IP55 / IP68

Using Place

Indoor / Outdoor

Power Consumption

13W / 30W

Service Life

20000 hours

OD of inlet

1/2 inch

OD of Outlet

1/2 inch

Dimension

82.3*102*46.4mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming


12 volt hot water pump for solar panel,hot water recirculating pump,solar hot water pump,12v solar water pump,12v water circulation pump,solar circulation pump 12v,12 volt heating circulation pump,12v circulation pump
