24V Commercial Vehicle DC Pump P9001

Published:2018-09-06

24V Commercial Vehicle DC Pump P9001
Product Details:




  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                           未标题-2-1.jpg




Commercial Vehicle DC Pump P9001.jpg



■ Product application
   The engine cooling circulation pump
   Motor control cooling cycle of 12M pure electric bus and hybrid bus
   The intellingent bath crock
   The intellingent toilet
   Other sanitary ware. Kitchen aquipment


■ Product information
   Ambient temperature:-40 to 125℃
   Medium temperature:-40 to 120℃
   Medium:Clear water,antifreeze

   Weight:2.21Kg
   Protection level:IP67
   Insulation level:F
   Service life:20000 hours
   Inlet and outlet:38mm

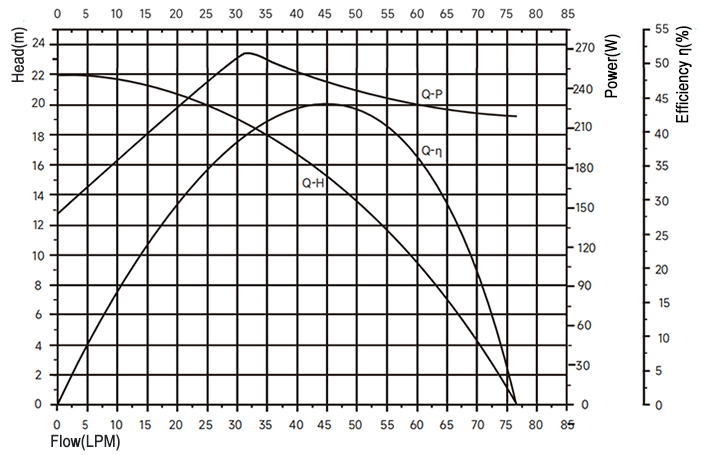

■ Curve


Commercial Vehicle DC Pump P9001.jpg


Commercial Vehicle DC Pump P9001.jpg


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

24

12-30

8

9

150

200

50

24

12-30

10

9

180

240

50


Commercial Vehicle DC Pump P9001.jpg



   ■ FAQ
   ●How long is your delivery time?
     Sample order is 7~10 days.
     Bulk order is 15~20 days.
     If there is pumps in stock, it is 2 days.

   ●How long is your warranty of pump?
     Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.

   ●What’s the payment method?
     Paypal or T/T,L/C .

   ●What certificates have your pumps passed?
     All our products have passed CE, RoHS, Reach.
     Some pumps met FDA, UL.


 Specifications

Type

P9001

Rated Voltage

24V / 24V

Voltage Range

12-30V / 12-30V

Max Flow

150L/min, 180L/min

Max Lift

9m / 9m

Max Noise

55dB / 50dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

-40-120

Ambient Temperature

-40-125

Pump Theory

Centrifugal Pump

Medium

Water, antifreeze

Protection Level

IP67

Using Place

Vehicle

Power Consumption

200W / 240W

Service Life

20000 hours

OD of inlet

38mm

OD of Outlet

38mm

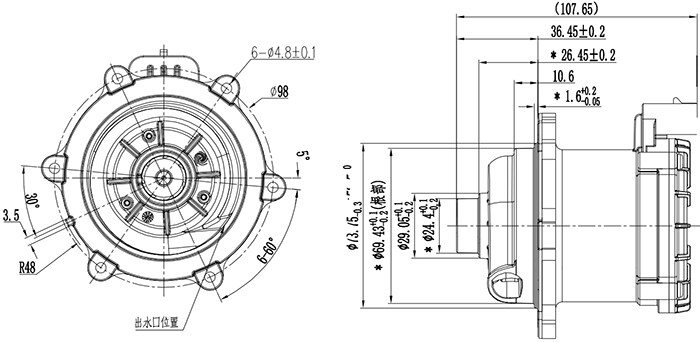

Dimension

180.9*156*90mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

Al alloy + PPS

Customized functions

1, Dry-running protection

2, PWM speed adjustable

3, FG signal output

4, Locked-rotor protection

Remarks

Not self-priming
