12V/24V DC Water Purifier Pump P4514

Published:2018-09-06

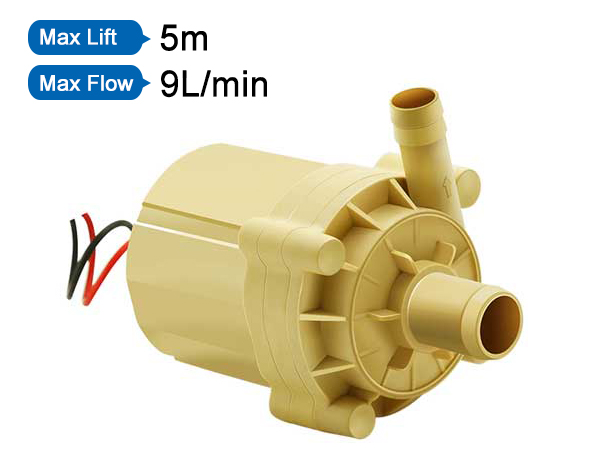

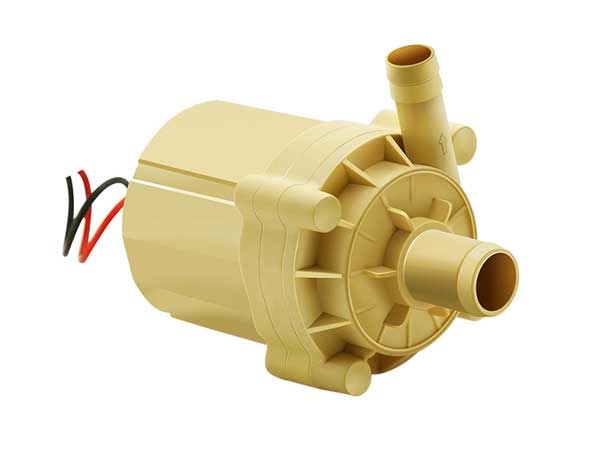

12V/24V DC Water Purifier Pump P4514
Product Details:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                      未标题-2-1.jpg



food grade water pump.jpg


■Product application:

   The water purifier

   Juice machine

   Coffee machine


■Product information:

   Ambient temperature:-25 to 70℃


   Medium temperature:0-100℃

   Medium:Clear water

   Using place:Indoor

   Weight:0.18kg

   Protection level:IP55

   Insulation level:E

   Service life:15000 hours

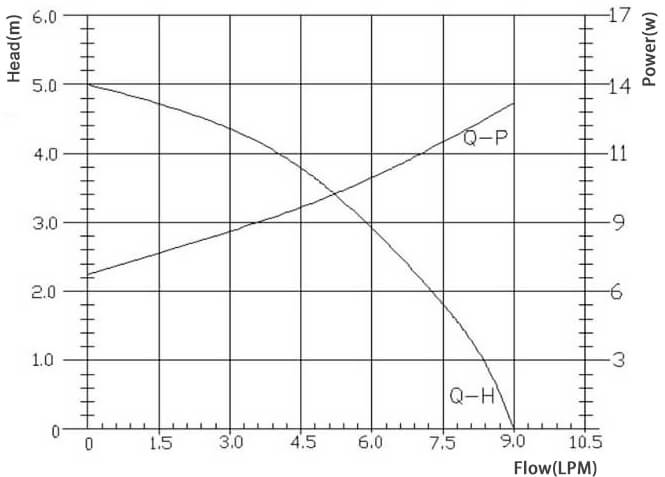

■ Curve

food grade water pump.jpg


food grade water pump.jpg



Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

12

8-20

0.65

3.5

7.5

8

45

24

12-30

0.55

5

9

13

45

FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Some pumps met FDA, UL.

■ Specifications

Type

P4514

Rated Voltage

12V / 24V

Voltage Range

8-20V / 12-30V

Max Flow

10L/min, 12L/min

Max Lift

6m / 9m

Max Noise

45dB / 45dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

Y

Liquid Temperature

0-100

Ambient Temperature

-25-70

Pump Theory

Centrifugal Pump

Medium

Hot or cold water

Protection Level

IP55 / IP68

Using Place

Indoor / Outdoor

Power Consumption

8W / 13W

Service Life

20000 hours

OD of inlet

14.2±0.1mm

OD of Outlet

9.9±0.1mm

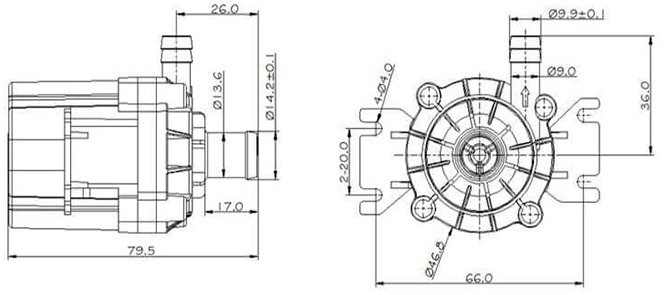

Dimension

79*68*45mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

XYRON PPE

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming
