Juicer machine DC Pump P3503

Published:2018-09-06

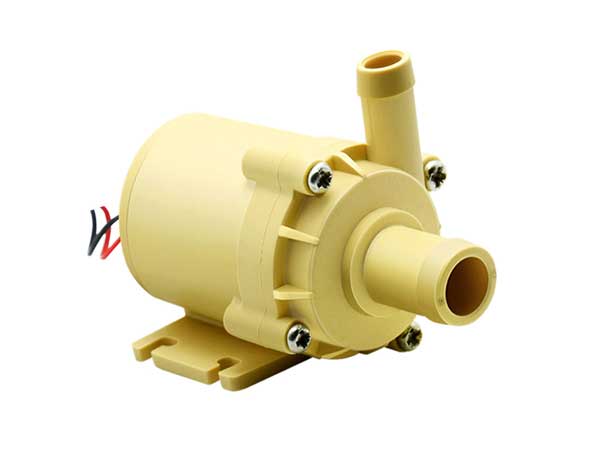

Juicer machine DC Pump P3503
Product Details:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


          I want to Buy Samples                I want to ask technical questions



dc pump 12v


■Product application:

   Water dispenser

   Juice machine

   Coffee machine


■Product information:

   Ambient temperature:-25 to 70℃

   Medium temperature:0-100℃

   Medium:Clear water

   Using place:Indoor

   Weight:0.10kg

   Protection level:IP68

   Insulation level:E

   Service life:15000 hours

 FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Parts of pumps met FDA, UL.

■ Specifications

Type

P3503

Rated Voltage

12V / 24V

Voltage Range

8-20V / 12-30V

Max Flow

7L/min, 7L/min

Max Lift

3m / 3m

Max Noise

35dB / 35dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

Y

Liquid Temperature

0-100℃

Ambient Temperature

-25-70℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water, beverage, oil

Protection Level

IP68

Using Place

Indoor / Outdoor

Power Consumption

8W / 8W

Service Life

20000 hours

OD of inlet

∅13.2mm

OD of Outlet

∅8.8mm

Dimension

74*56*35mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

XYRON PPE

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming


■ Curve

small 12 volt pumpmini pump 12v

Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

12

8-20

0.85

4

7.5

10

35

24

12-30

0.35

3

7

8

35


food grade pump
