12v Cooling Pump P3004

Published:2018-09-06

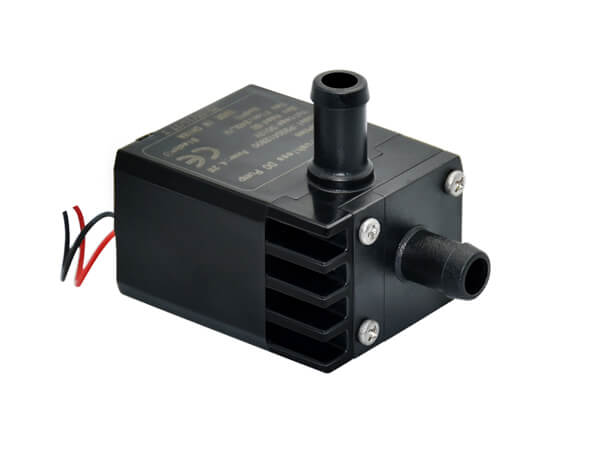

12v Cooling Pump P3004
Product Details:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


          I want to Buy Samples                I want to ask technical questions



small 12v pump


■Product application

   The medium and small laser chillers

   Communication stations,air conditioning drainage

   The LED lamp,semiconductor cycle refrigeration

   Machine tool equipment,medical equipment circulation cooling

■ FAQ

  ●How long is your delivery time?
    Sample order is 7~10 days.
    Bulk order is 30~35 days.
    If there is pumps in stock, it is 2 days.



  ●How long is your warranty of pump?
    Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



  ●What’s the payment method?
    Paypal or T/T,L/C .



  ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Parts of pumps met FDA, UL.

■ Specifications

Type

P3004

Rated Voltage

6V/12V

Voltage Range

4-9V/8-20V

Max Flow

2.5L/min, 4L/min

Max Lift

1.5m / 3m

Max Noise

35dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0-100

Ambient Temperature

-25-70

Pump Theory

Centrifugal Pump

Medium

Hot or cold water,oil,antifreeze

Protection Level

IP68

Using Place

In door / Out door

Power Consumption

3.0W / 4.2W

Service Life

20000 hours

OD of Inlet

5.6mm

OD of Outlet

5.5mm

Dimension

53.5*40*34mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

XYRON PPE

Customized functions

1, Dry-running protection

2, Submersible

3, FG signal output

4, Locked-rotor protection

Remarks

Not self-priming


■ Curve

small 12v pump


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

12

8-20

0.36

2.6

4

4.3

30
