Electric Mattress Pump P7001

Published:2018-09-06

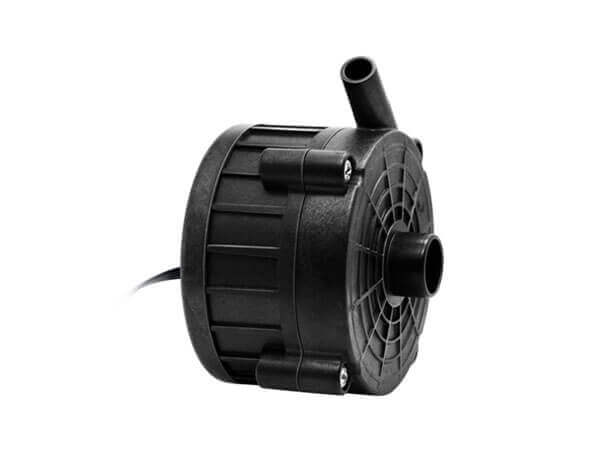

Electric Mattress Pump P7001
Product Details:



  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


          I want to Buy Samples                I want to ask technical questions



Mattress water Pump


■Product application

Water heating mattress

Floor heating boilers

Computer cooling system


■Product information

Weight:0.24Kg

Protection level:IP55

Insulation level:E

Service life:10000 hours

Ambient temperature:-25 to 70℃

Medium temperature:0-70℃

Medium:Clear water,antifreeze

Using place:Indoor



■ FAQ

  How long is your delivery time?
     Sample order is 7~10 days.
     Bulk order is 30~35 days.
     If there is pumps in stock, it is 2 days.



   How long is your warranty of pump?
     Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



   What’s the payment method?
     Paypal or T/T,L/C .



   What certificates have your pumps passed?
     All our products have passed CE, RoHS, Reach.
     Parts of pumps met FDA, UL.


 Specifications

Type

P7001

Rated Voltage

8V / 12V

Voltage Range

6-10V / 8-13.5V

Max Flow

8L/min, 9L/min

Max Lift

2m / 2.2m

Max Noise

25dB / 26dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

0-70

Ambient Temperature

-25-70℃

Pump Theory

Centrifugal Pump

Medium

Hot or cold water, oil, antifreeze

Protection Level

IP55 / IP68

Using Place

Indoor / Outdoor

Power Consumption

6W / 7W

Service Life

20000 hours

OD of inlet

17.0±0.2mm

OD of Outlet

9.8±0.2mm

Dimension


Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

XYRON PPE

Customized functions

1, Dry-running protection

2, Submersible

3, PWM speed adjustable

4, FG signal output

5, Locked-rotor protection

Remarks

Not self-priming



 Curve

Mattress water Pump


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dBA

8

6-10

0.9

2.2

9

7

26

12

8-13.5

0.5

2.0

8

6

25


Mattress water Pump
