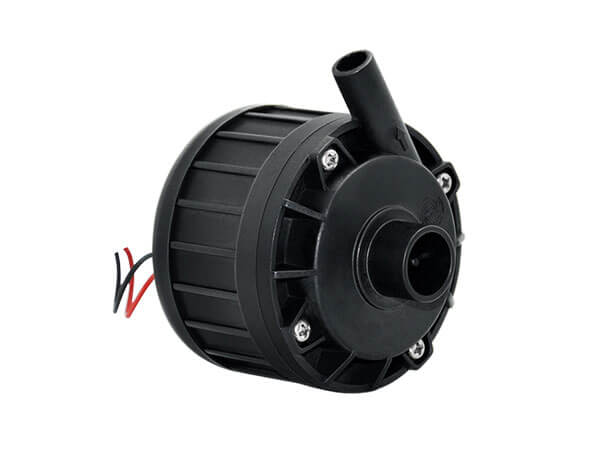

Heating Mattress Pump P6028
Published:2018-09-06

Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com I want to Buy Samples I want to ask technical questions |
■Product application
The water heating mattress
The floor heating
Boilers The computer cooling system
■Product information
Weight:0.16Kg
Protection level:IP55
Insulation level:E
Service life:10000 hours
Ambient temperature:-25 to 70℃
Medium temperature:0-70℃
Medium:Clear water,antifreeze
Using place:Indoor
■ FAQ
●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
●How long is your warranty of pump?
Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.
●What’s the payment method?
Paypal or T/T,L/C .
●What certificates have your pumps passed?
All our products have passed CE, RoHS, Reach.
Parts of pumps met FDA, UL.
■ Specifications
Type | P6028 |
Rated Voltage | 12V / 12V |
Voltage Range | 8-20V / 8V-20V |
Max Flow | 8L/min, 7L/min |
Max Lift | 2.2m / 1.5m |
Max Noise | 25dB / 23dB |
Motor Type | DC Brushless Motor |
Food Grade(Y/N) | N |
Liquid Temperature | 0-70℃ |
Ambient Temperature | -25-70℃ |
Pump Theory | Centrifugal Pump |
Medium | Hot or cold water, oil, antifreeze |
Protection Level | IP55 / IP68 |
Using Place | Indoor / Outdoor |
Power Consumption | 4W / 5W |
Service Life | 15000 hours |
OD of inlet | ∅17.0±0.1mm |
OD of Outlet | ∅10.0±0.1mm |
Dimension | 57.5*62*67.25mm |
Power supply | Battery / Electric / Solar panel |
Structure | Single-stage |
Material | XYRON PPE |
Customized functions | 1, Dry-running protection 2, Submersible 3, PWM speed adjustable 4, FG signal output 5, Locked-rotor protection |
Remarks | Not self-priming |
■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Poweer | Max Noise |
V | V | A | m | L/min | W | dB(A) |
12 | 6-10 | 0.45 | 2.2 | 8 | 5 | ≤25 |
12 | 8-13.5 | 0.33 | 1.5 | 7 | 4 | ≤23 |
