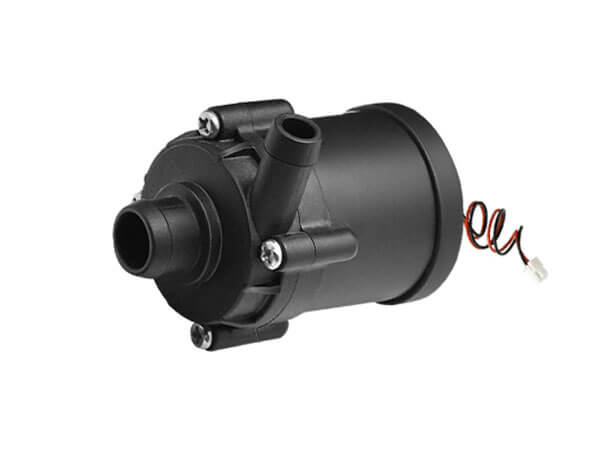

DC Mattress Pump P3514
Published:2018-09-06

Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com I want to Buy Samples I want to ask technical questions |
■Product application
The small boiler
Plumbing mattress
PC and LED cooling
Weight:0.14Kg
Protection level:IP68
Insulation level:E
Service life:10000 hours
Ambient temperature:-25 to 70℃
Medium temperature:0 to 70℃
Medium:Clear water,antifreeze
Using place:Indoor
■ FAQ
●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
●How long is your warranty of pump?
Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.
●What’s the payment method?
Paypal or T/T,L/C .
●What certificates have your pumps passed?
All our products have passed CE, RoHS, Reach.
Parts of pumps met FDA, UL.
■ Specifications
Type | P3514 |
Rated Voltage | 12V / 12V |
Voltage Range | 8-20V / 8-20V |
Max Flow | 4.5L/min, 5.4L/min |
Max Lift | 1.2m / 1.7m |
Max Noise | 23dB / 26dB |
Motor Type | DC Brushless Motor |
Food Grade(Y/N) | N |
Liquid Temperature | 0-70℃ |
Ambient Temperature | -25-70℃ |
Pump Theory | Centrifugal Pump |
Medium | Hot or cold water, oil, antifreeze |
Protection Level | IP68 |
Using Place | Indoor |
Power Consumption | 2.4W / 3.5W |
Service Life | 15000 hours |
OD of inlet | ∅13.2mm |
OD of Outlet | ∅8.8mm |
Dimension | 61.5*54*50mm |
Power supply | Battery / Electric / Solar panel |
Structure | Single-stage |
Material | XYRON PPE |
Customized functions | 1, Dry-running protection 2, Submersible 3, FG signal output 4, Locked-rotor protection |
Remarks | Not self-priming |
■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Poweer | Max Noise |
V | V | A | m | L/min | W | dB(A) |
12 | 8-20 | 0.85 | 4 | 7.5 | 10 | ≤35 |
24 | 12-30 | 0.35 | 3 | 7 | 8 | ≤35 |
